Vertical Ribbon Vacuum Dryer

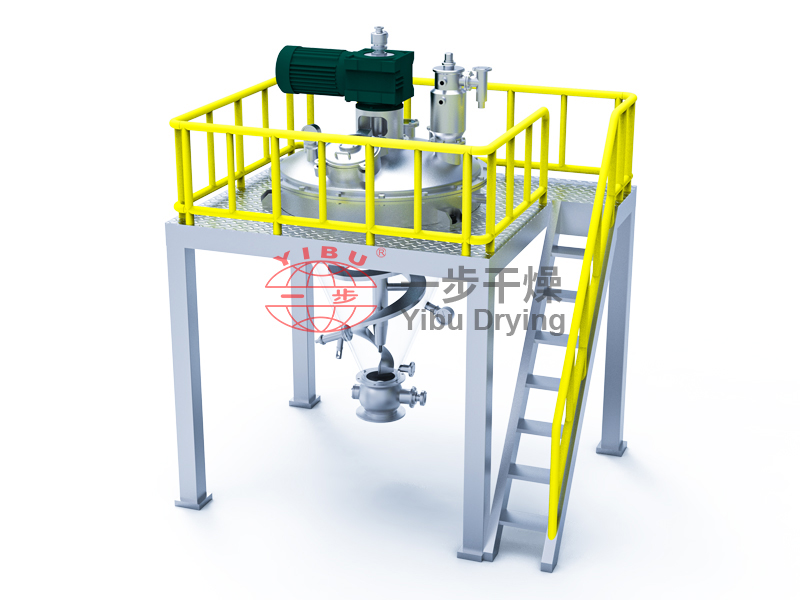

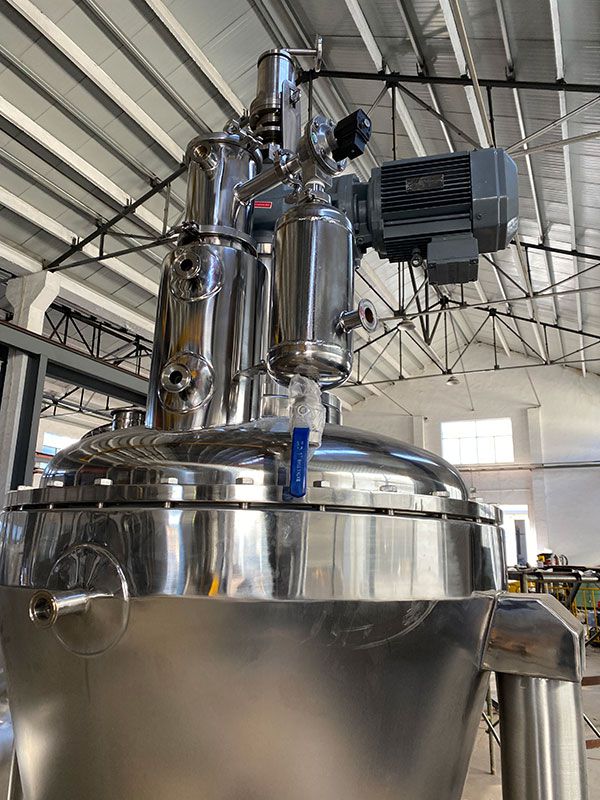

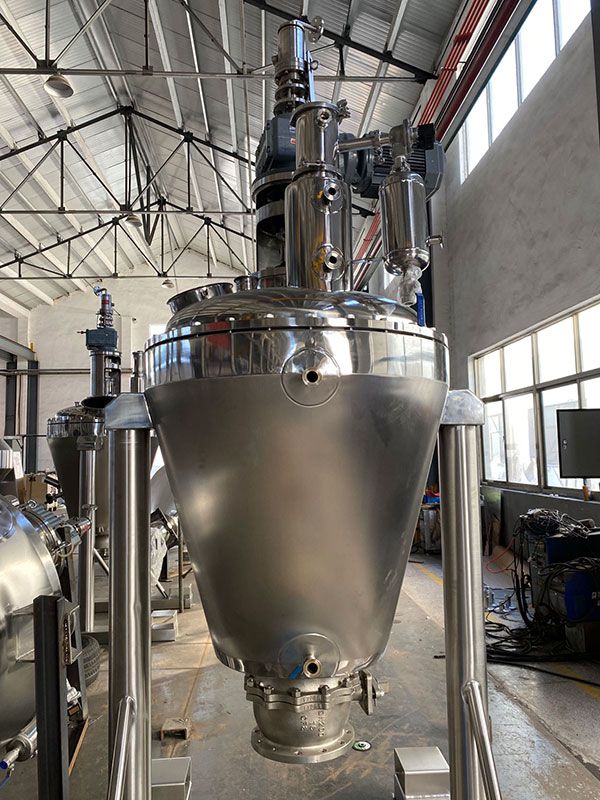

LDG Series Vertical Ribbon Vacuum Dryer

This multifunctional vertical ribbon vacuum dryer combines drying, pulverizing, and mixing in a fully enclosed system, offering exceptional versatility and efficiency. It operates at three to five times the efficiency of similar-sized double-cone vacuum dryers, making it a powerful tool for industries such as pharmaceuticals, chemicals, pesticides, and food processing. Its unique design ensures that materials are processed smoothly and uniformly, while maintaining their structural integrity.

Request a Quote

Specifications

Model	LDG-500	LDG-1000	LDG-1500	LDG-2000	LDG-3000	LDG-4000	LDG-5000	LDG-6000	LDG-8000
Total volume (m³)	≥0.5	≥1.0	≥1.5	≥2.0	≥3.0	≥4.0	≥5.0	≥6.0	≥8.0
Loading coefficient	0.7
Heating area (m²)	2.9	4.6	6.0	7.5	9.2	11.0	13.2	15.5	17.8
Motor power (kW)	5.5	7.5	11	15	22	30	37	45	55
Stirring speed (rpm)	5-35 rpm
Inner diameter of single-conical barrel (mm)	1100	1400	1600	1800	2000	2200	2400	2600	2800
Total height (m)	2.6	3.1	3.4	3.8	4.2	4.6	5.0	5.4	6.0

Features

Significantly reduces drying times while delivering higher efficiency, outperforming traditional systems
Features advanced airflow technology that minimizes the impact of gases on the drying process, ensuring smooth operation
The system minimizes material leakage and allows for controlled solid output flow, ensuring consistent results

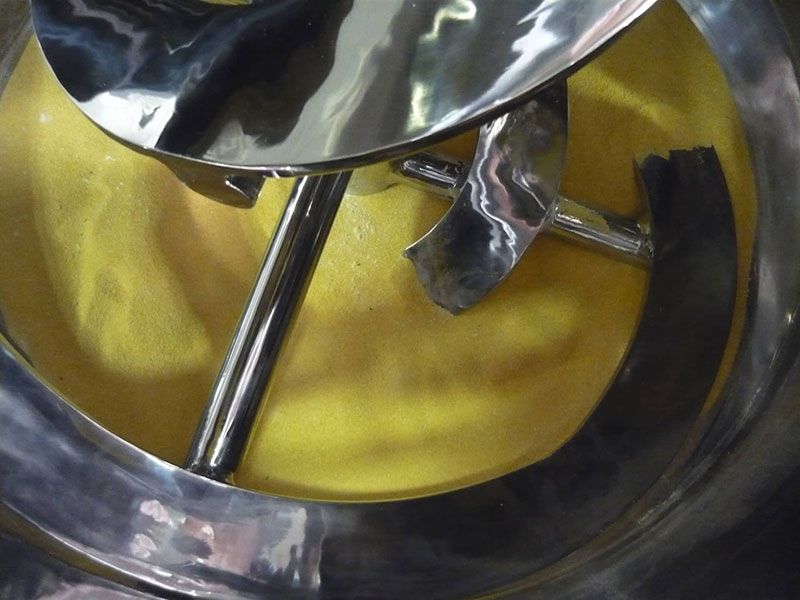

The gentle rotating motion of the conical ribbon agitator preserves the crystal structure of the materials during drying and mixing
Prevents contamination by eliminating the risk of seal failure in the shaft, ensuring product purity
Offers a broad handling capacity and low energy consumption per unit mass, making it both effective and economical
The spacious design simplifies inspection and maintenance, making it user-friendly and reliable for long-term operation
