    Tube Bundle Dryer

    Tube Bundle Dryer

    The tube bundle dryer is an indirectly heated, contact type drying machine that can perform both parallel flow and counter-flow drying. To evaporate one kg of water, it only consumes 1.5 to 2kg of team, 50% less than fluidizing dryers. Drying one ton of fermented grass powder only consumes 15kW/hr, 75% less than a fluid bed dryer. This series of drying equipment is extremely efficient and highly automated.

    Request a Quote
    Technical Paramenters
    Specification speed of rotation (rpm) main machine power (kw) heat exchange area (m2) drying capacity (evaporate kg of water/m2h) overall dimension (L*W*H)(mm) weight (t)
    GZG50 5-8 5.5 50 4.7 8032x1712x2250 9.0
    GZG100 5-8 7.5 100 4.7 9100x1912x2470 14.0
    GZG150 5-8 11 150 4.7 8500x2212x2810 18.5
    GZG200 5-8 11 200 4.7 10000x2212x2810 20.0
    GZG250 5-8 15 250 4.7 10200x2212x2810 23.0
    GZG300 5-8 22 300 4.7 10784x2488x3383 26.0
    GZG350 5-8 30 350 4.7 12048x2488x3383 28.0
    GZG400 5-8 30 400 4.7 13048x2488x3383 30.0
    GZG500 5-8 45 500 4.7 11298x2982x3965 40.0
    GZG600 5-8 75 600 4.7 12298x2982x4165 45.0
    GZG700 5-8 75 700 4.7 13298x2982x4365 51.0
    Features of Materials
    Normal material light industry Water contents before the entering the machine Water contents of dry product Drying strength evaporation kgh2o/m2h Energy consumption
    (kj/evaporate kg of water)
    Straw 55% 3-5% 2.5-3 3500-3800
    (kj/evaporate kg of water)
    (840-910 < LCal/evaporater kg of water > )
    < amount to about 1.45-1.50 kg of standard saturated steam >
    Corn fibre 60% 10-12% 4.8
    Fermented grass power 45% 12-13% 4.7
    Wooden piece and wooden chip 20% 2-3% 4.3
    Potato fibre 65% 10-12% 4.8
    Distiller's grains for beer or spirit 65% 10-12% 4.9
    Feed carrier 16% 6-8% 4.2
    Rape seed 60% 5-7% 4.5
    Pig blood fermented power 35% 10% 4.4
    Bone power 40% 10% 4.6

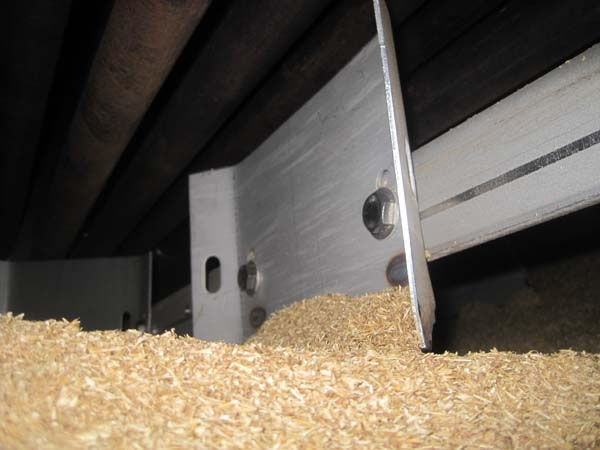

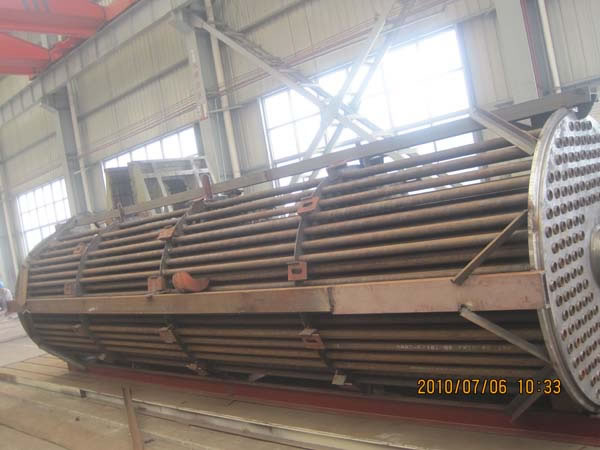

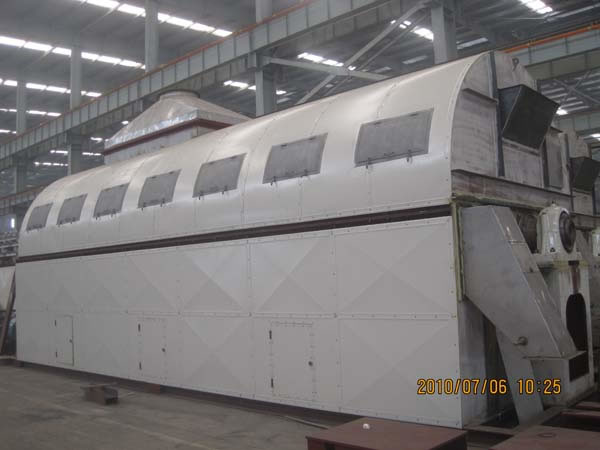

    Detailed Images
    • Tube Bundle Dryer
    • Tube Bundle Dryer
    • Tube Bundle Dryer
