    Vertical Continuous Plate Dryer
    Vertical Continuous Plate Dryer Vertical Continuous Plate Dryer Vertical Continuous Plate Dryer Vertical Continuous Plate Dryer

    Vertical Continuous Plate Dryer

    PLG Series Vertical Continuous Plate Dryer

    Highly efficient and designed for continuous operation, the vertical plate dryer offers a robust solution for drying processes across various industries. With options for atmospheric, sealed, and vacuum operation, this bdrying system is available in multiple specifications and material choices to cater to a wide range of drying needs. Offering drying areas between 4 and 180 m², it is known for its low energy consumption and adaptability, making it a practical choice for industries like chemical processing, pharmaceuticals, food production, and fertilizers.

    Request a Quote
    Applications
    • Effective for both organic and inorganic chemical drying processes
    • Ideal for drying raw materials and compounds that require precise handling
    • Supports efficient drying of food ingredients and additives, ensuring product consistency
    • Handles large volumes with ease, making it perfect for agricultural products
    Specifications
    Model Outer diameter (mm) Height (mm) Drying area (m²) Power (kW)
    1200/4 1850 2608 3.3 1.1
    1200/6 3028 4.9
    1200/8 3448 6.6 1.5
    1200/10 3868 8.2
    1200/12 4288 9.9
    1500/6 2100 3022 8.0 2.2
    1500/8 3442 10.7
    1500/10 3862 13.4
    1500/12 4282 16.1 3.0
    1500/14 4702 18.8
    1500/16 5122 21.5
    2200/6 2900 3262 18.5 3.0
    2200/8 3682 24.6
    2200/10 4102 30.8
    2200/12 4522 36.9 4.0
    2200/14 4942 43.1
    2200/16 5362 49.3 5.5
    2200/18 5782 55.4
    2200/20 6202 61.6
    2200/22 6622 67.7 7.5
    2200/24 7042 73.9
    2200/26 7462 80.0
    3000/8 3800 4050 48 11
    3000/10 4650 60
    3000/12 5250 72
    3000/14 5850 84
    3000/16 6450 96
    3000/18 7050 108 13
    3000/20 7650 120
    3000/22 8250 132
    3000/24 8850 144
    3000/26 9450 156 15
    3000/28 10050 168
    3000/30 10650 180
    Features
    (1) Easy control and high adaptability

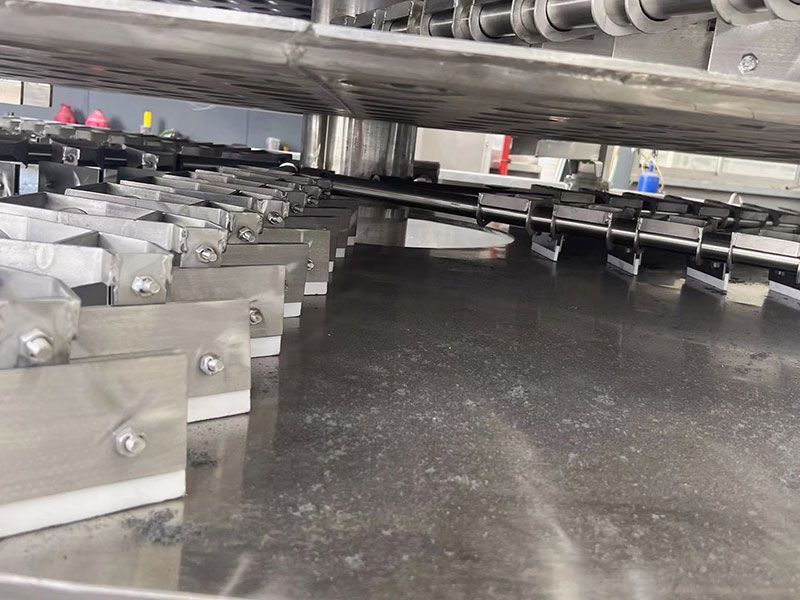

    • The drying process can be optimized by adjusting the thickness of the material layer, the rotation speed of the main shaft, the number of rotating arms, and the configuration of the plow blades

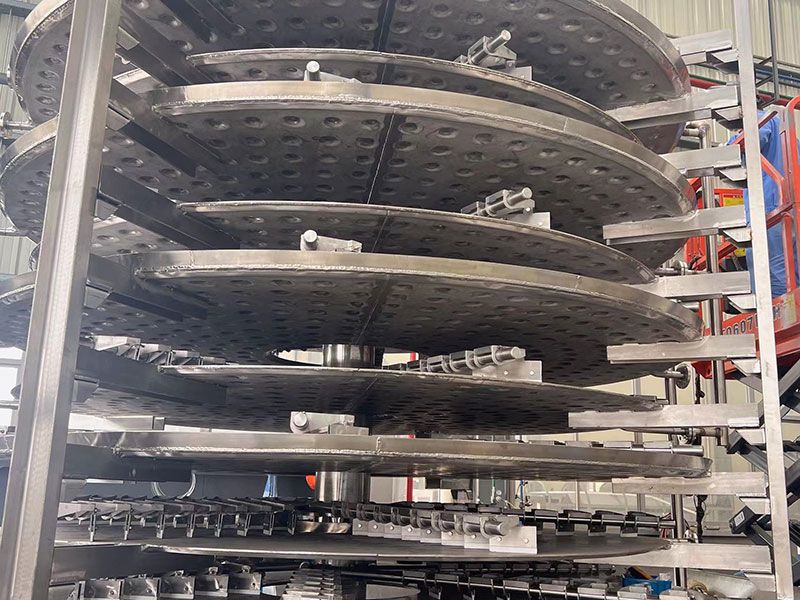

    • Each drying plate can be independently heated or cooled using different mediums, allowing for precise and easy temperature control of the material.
    • The material's residence time within the system can be adjusted as needed
    • The material flows in one direction without back-mixing, ensuring uniform drying, stable quality, and eliminating the need for post-drying mixing
    (2) Simple and convenient operation
    • Once the feed is stopped, the plow blades quickly clear the remaining material from the dryer, making the process efficient
    • The large inspection doors with clear windows allow for thorough cleaning and observation of the drying equipment, ensuring easy maintenance
    (3) Low energy consumption
    • Thin material layers and low shaft rotation speeds mean that the power requirements are minimal, leading to lower energy consumption
    • The system utilizes conductive heat for drying, resulting in high thermal efficiency and reduced energy use
    (4) Clean operation and solvent recovery
    • Atmospheric type: The low internal airflow speeds and uneven humidity distribution (higher at the bottom, lower at the top) prevent dust from accumulating at the top of the dryer. The exhaust is nearly dust-free
    • Sealed type: Equipped with a solvent recovery system, it effectively recovers organic solvents from the moist gas. This simple recovery system operates with high efficiency, making it ideal for handling flammable, explosive, toxic, or oxidizing materials. The use of nitrogen as a carrier gas enables safe closed-loop operation
    • Vacuum type: Operates under vacuum conditions, making it especially suitable for drying heat-sensitive materials with excellent results
    (5) Easy installation and small footprint

    Installation is simple requiring only placement and vertical setup. The compact design minimizes floor space, while installation points are clearly defined for precise positioning
