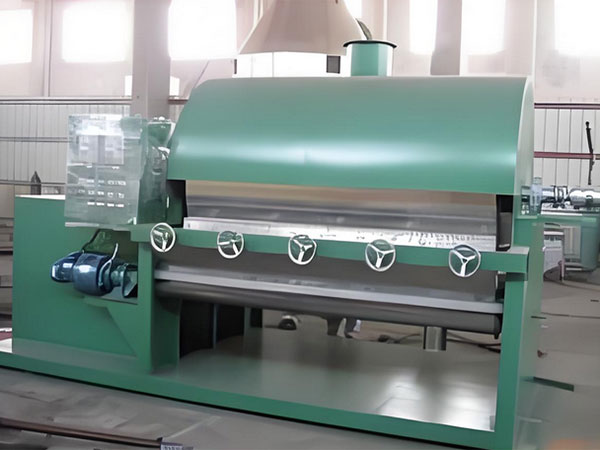

Continuous Drum Dryer

Request a Quote

The continuous drum dryer is rotating continuous drying equipment with an internal heating conducting style. Heat is transferred to the internal wall of the cylinder through pipes. Dried products are then scraped off of the cylinder wall with a blade. The material is then collected on the spiral conveyor and collected.

Applications

This drum drying system is suitable for drying liquid raw materials or thick liquids in chemical, dyestuff, pharmaceutical, foodstuff, metallurgy and other industries.

Technical Paramenters

Specification	size of cylinder diameter x length mm	effective heating area m²	drying capacity kg·h₂o/m²·h	steam consumption kg/h	power of motor kw	size LxWxH mm	weight kg
HG-600	Φ600x800	1.12	40-70	100-175	2.2	1700x800x1500	850
HG-700	Φ700x1000	1.65	60-90	150-225	3	2100x1000x1800	1210
HG-800	Φ800x1200	2.26	90-130	225-325	4	2500x1100x1980	1700
HG-1000	Φ1000x1400	3.30	130-190	325-475	5.5	2700x1300x2250	2100
HG-1200	Φ1200x1500	4.24	160-250	400-625	7.5	2800x1500x2450	2650
HG-1400	Φ1400x1600	5.28	210-310	525-775	11	3150x1700x2800	3220
HG-1600	Φ1600x1800	6.79	270-400	675-1000	11	3350x1900x3150	4350
HG-1800	Φ1800x2000	8.48	330-500	825-1250	15	3600x2050x3500	5100
HG-1800A	Φ1800x2500	10.60	420-630	1050-1575	18.5	4100x2050x3500	6150

Features

High heat efficiency. The cylinder prevents heat radiation, minimizing heat loss.
Large operation elasticity and wide application. Various adjustments can be made to facilitate drying for different materials.
Short drying period. The drying period of materials is normally 10 to 300 seconds, making it suitable for heat-sensitive materials. It also can be operated under vacuum conditions.
Fast drying rate. Normal thickness of the film that coats the cylinder walls is 0.3 to 1.5mm. Once heat is applied, the machine can process 20-70 kg.H2O/m².h.
