Hollow Paddle Dryer

QJ Series Hollow Paddle Dryer

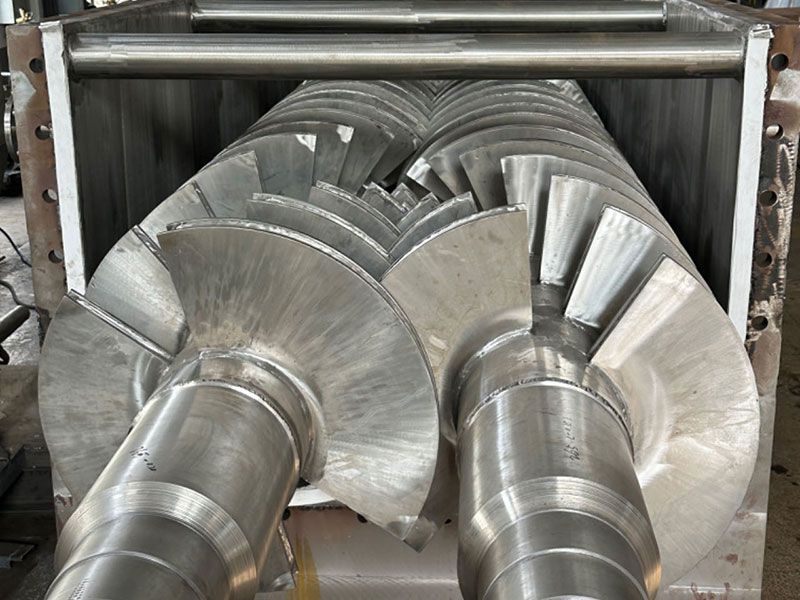

Our hollow paddle dryers are designed to handle a wide variety of materials, from pastes to powders. Its innovative wedge-shaped paddles provide excellent heat transfer while maintaining a self-cleaning function, ensuring consistent performance. Capable of performing operations such as drying, cooling, heating, and sterilization, this system is ideal for industries requiring precise control and minimal energy consumption. With its flexibility, it meets the needs of sectors like food processing, chemicals, and industrial sludge treatment.

Request a Quote

Applications

Hollow paddle dryers are widely applied in food processing, chemicals, petrochemicals, dye production, and industrial sludge treatment, offering reliable performance across various sectors.

Specifications

Model	QJ3	QJ9	QJ13	QJ18	QJ29	QJ41	QJ52	QJ68	QJ81	QJ95	QJ110	QJ125	QJ140
Heat exchange area (m²)	3	9	13	18	29	41	52	68	81	95	110	125	140
Effective volume (m³)	0.06	0.32	0.59	1.09	1.85	2.8	3.96	5.21	6.43	8.08	9.46	10.75	12.18
Rotation speed (rpm)	5-20	5-20	5-20	5-20	5-20	5-10	5-10	5-10	5-10	1-8	1-8	1-8	1-8
Transmission power (kW)	2.2	4	5.5	7.5	11	18.5	30	37	45	55	75	90	110
Machinewidth A (mm)	306	584	762	940	1118	1296	1474	1655	1828	2032	2210	2480	2610
Total width B (mm)	736	841	1066	1320	1474	1676	1854	2134	2186	2438	2668	2732	2935
Machine length C (mm)	1956	2820	3048	3328	4114	4724	5258	5842	6020	6124	6850	7500	7860
Total length D (mm)	2972	4876	5486	5918	6808	7570	8306	9296	9678	9704	10300	11800	12900
Center height E (mm)	380	450	534	610	762	915	1066	1220	1430	1560	1650	1760	1856
Total height H (mm)	762	838	1092	1270	1524	1778	2032	2362	2464	2566	2668	2769	2838

Features

Indirect heating reduces the need for large amounts of circulating air, leading to lower energy consumption. The dryer is insulated, which means that just 1.2 kg of steam is required to evaporate 1 kg of water when processing pastes
The compact design reduces the overall size of the system while maximizing the heat transfer surface, resulting in shorter processing times and lower construction and operational costs
Able to handle both heat-sensitive and high-temperature materials, the system uses different mediums like steam, thermal oil, and cooling water, offering flexibility for a variety of applications. It supports both continuous and batch operations
Minimal air circulation means lower dust emissions and reduced solvent evaporation. In cases requiring solvent recovery or when handling hazardous materials, the system can be configured for closed-loop operation, reducing its environmental footprint
