The industrial tunnel oven features high heating speed, short drying time and excellent uniformity. There is minimal waste produced using this drying unit. The cabinet dryer is highly efficient and uses 1/3 of the energy of infrared dryers. The microwave drying power and transport speed are all adjustable.
Parameters
| Specification |
DW-1.2-8 |
DW-1.2-10 |
DW-1.6-8 |
DW-1.6-10 |
DW-2-8 |
DW-2-10 |
| Unit number |
4 |
6 |
4 |
6 |
4 |
6 |
| Belt Width (m) |
1.2 |
1.2 |
1.6 |
1.6 |
2 |
2 |
| Length of drying section (m) |
8 |
10 |
8 |
10 |
8 |
10 |
| Thickness of material (mm) |
10-80 |
|
|
|
|
|
| Temperature /℃ |
60-130 |
| Steam pressure /MPa |
0.2-0.8 |
| Steam consumption kg/h |
2.2-2.5 |
| Drying strength Kg/m2.h |
6-20kg/m2.h |
| Power of fan /KW |
3.3 |
4.4 |
6.6 |
8.8 |
12 |
16 |
| Total power /KW |
4.05 |
5.15 |
7.35 |
9.55 |
13.1 |
17.1 |
Specialized machine for vegetable
| Items/Specification |
Unit |
Three specialized machines for vegetable in a series |
Five-layer specialized machine for vegetable |
| Model |
|
DWP-2-10-3 |
DWF-2-10-3 |
DW5-3-12 |
| Effective belt width |
m |
2 |
2 |
3 |
| Effective belt length |
m/unit |
10 |
10 |
12 |
| Number of units |
Piece |
3 |
3 |
|
| Number of layers |
Piece |
|
|
5 |
| Drying capacity |
kg/h |
600 |
720 |
2000 |
| Drying strength |
kg/h |
400-510 |
480-640 |
1440-1800 |
| Steam consumption |
Kg steam/KgH2O |
2.2-2.5 |
2.2-2.5 |
2.2-2.4 |
| Heating area |
m2 |
900 |
1440 |
2600 |
| Total power |
kw |
70 |
52 |
150 |
| Overall size |
m |
33.2×2.58×2.8 |
33.2×2.27×2.85 |
15.3×4.3×8.5 |
| Heat source |
|
Steam heater, heat transfer oil, hot air furnace, electric heater |
Specialized machine for feed (frame type)
| Items |
Unit |
DWZ-3×12 |
| Effective belt width |
m |
3 |
| Effective belt length |
m/unit |
12 |
| Working temperature |
℃ |
80-130 |
| Pressure of steam |
Mpa |
0.4-0.8 |
| Drying time |
min |
35-50 |
| Thickness of material |
cm |
5-8 |
| Drying strength |
kg/h |
6-20 |
| Consumption of steam |
Kgsteam/KgH2O |
2-2.4 |
| Total power |
kw |
76 |
| Overall dimension |
m |
15.1×4.3×3.4 |

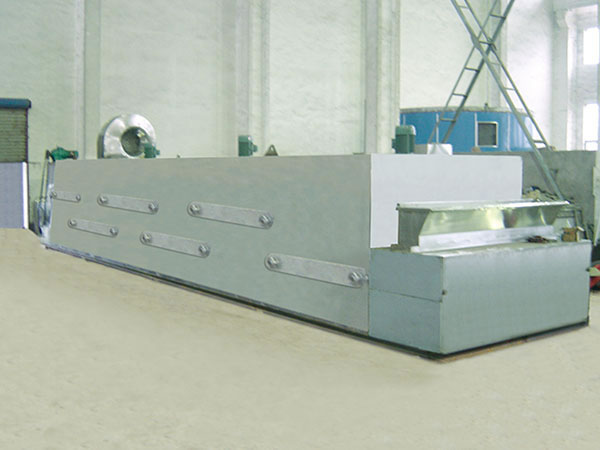

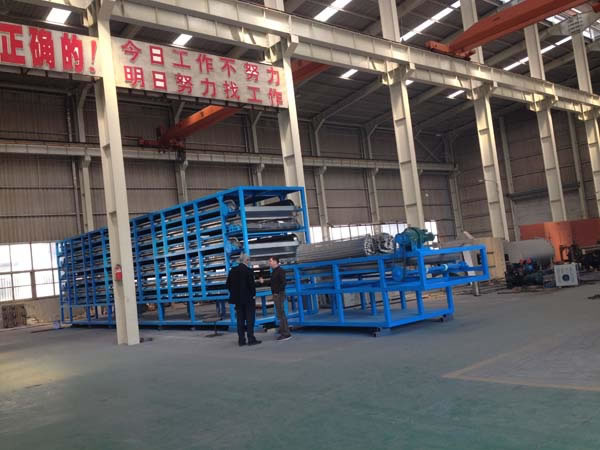

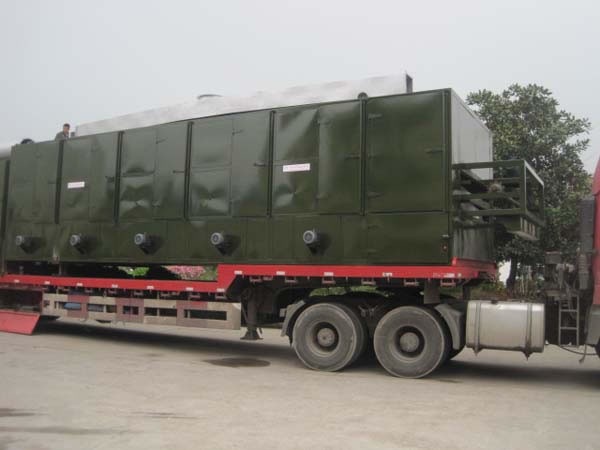

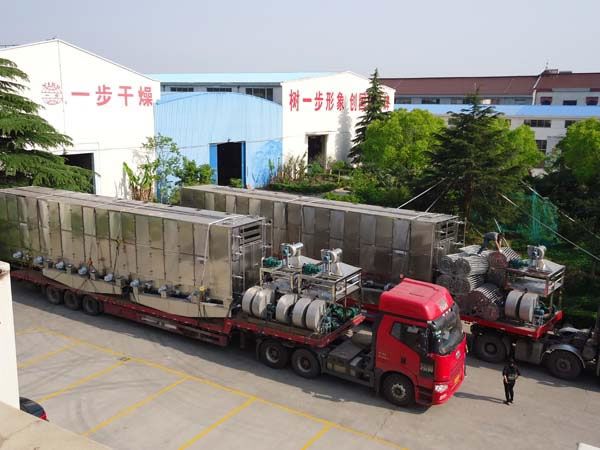

Detailed Images
