This vacuum freeze dryer allows for drying without altering the chemical and biological states of the material that is being processed. This makes this type of drying technology perfect for research uses and for food preservation.
Parameters
| ItemSpecification | unit | GZLS-0.5 | GZLS-0.8 | GZLS-1 | GZLS-2 | GZLS-3 | GZLS-6 | GZLS-8 | GZLS-10 | GZLS-14 | GZLS-20 | GZLS-40 |
| Capacity area | M2 | 0.5 | 0.8 | 1 | 2 | 3 | 6 | 8 | 10 | 14 | 20 | 40 |
| Effective layers | layer | 2 | 3 | 4 | 4 | 4 | 5 | 7 | 7 | 7 | 10 | 18 |
| Max. bulk | mm | 1052 | 1578 | 2104 | 4208 | 6312 | 11835 | 16519 | 23092 | 29456 | 42080 | 84160 |
| Layer distance | mm | 120 (adjustable to meet different requirement) | ||||||||||
| Layer temp. | ℃ | -115 | ||||||||||
| Temperature Difference between layers | ℃ | ±1 | ||||||||||
| Stoppering method | Manual | Hydraulic | ||||||||||
| Vacuum pressure | Pa | 1 | ||||||||||
| Condensing capacity | kg | 5 | 8 | 10 | 20 | 30 | 60 | 80 | 100 | 140 | 200 | 400 |
| Working temperature of condenser | ℃ | -37 | ||||||||||
| Anti-frost | showering and water immersing | |||||||||||
| Working condition | ℃ | temperature 5~35℃ relative humidity ≤80℃ | ||||||||||
| Temperature of cooling water | ℃ | ≤28℃ | ||||||||||
| Dimension L*W*H | mm | 1400×1000×2000 | 1400×1000×2000 | 2450×900×2400 | 2800×1250×2500 | 3200×1600×2800 | 3900×1950×3000 | 4200×2250×3500 | 4200×2250×3500 | 4500×2250×3800 | 5000×2700×4200 | 6000×3500×4200 |
| Power | kw | 5 | 6.5 | 7.5 | 12 | 20 | 40 | 50 | 55 | 75 | 100 | 180 |
| Cooling water capacity | T/h | 2 | 3 | 5 | 10 | 13 | 15 | 20 | 30 | 60 | ||
| Controller | Programming | |||||||||||
| Weight | kg | 1000 | 1150 | 1300 | 2500 | 3500 | 6000 | 8000 | 9000 | 12000 | 16000 | 23000 |
| Note | air cooling | water cooling | ||||||||||
With the development of the biological, pharmaceutical, food and health product industries, the vacuum freezing dryer is a vital piece of equipment.
Vacuum freeze drying is an advanced method of material dehydration. It freezes the material in the low temperature and makes the water inside sublimate directly in the vacuum condition. Then it collects the sublimated vapor by means of the condensation, leaving behind a dried product.

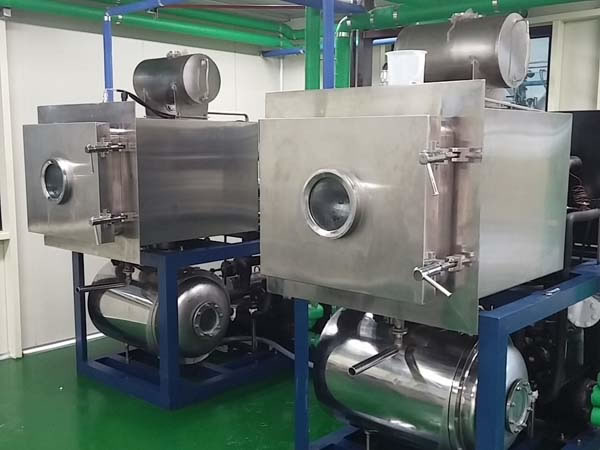

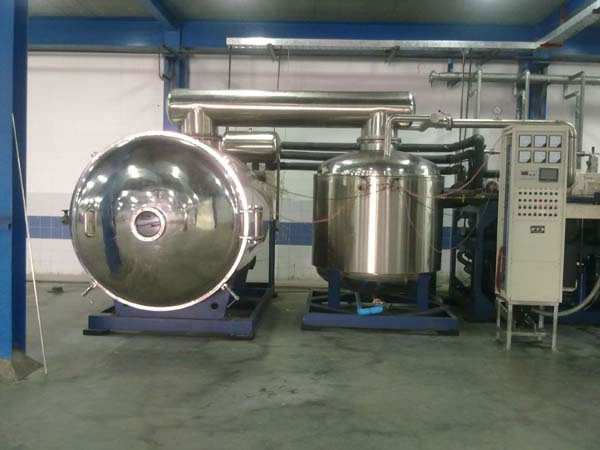

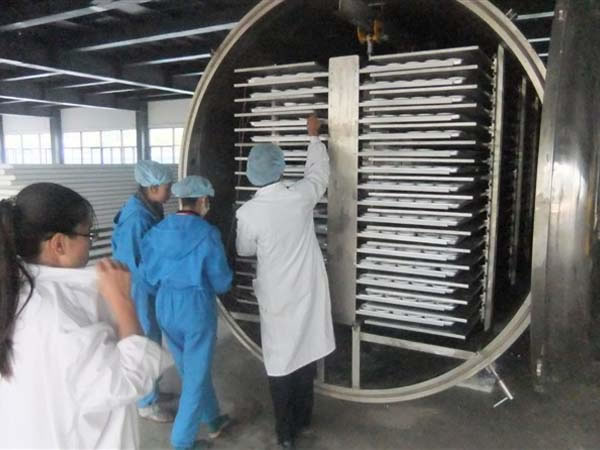

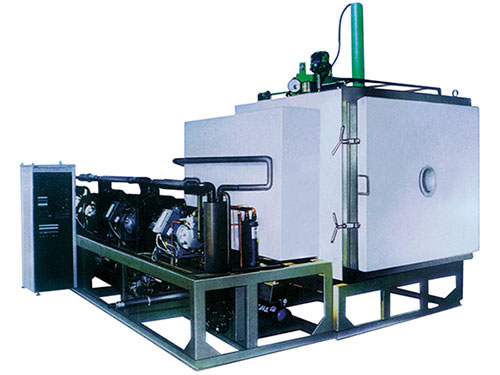

Other Detailed Images:
