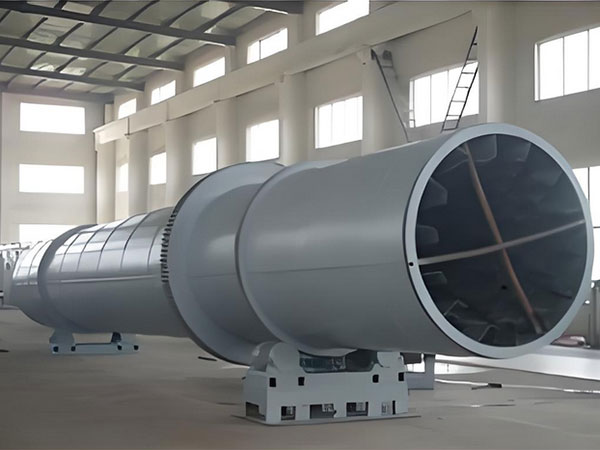

Rotary Drum Dryer

This rotary drum dryer takes wet material and stirs it with bafflers that are uniformly distributed in the barrel. The hot air and the stirring motion expedites the drying process and quickly evaporates unwanted moisture.

Applications

This drying equipment is used for drying heavy particles in chemical, mining, metallurgy and other industrial applications. The stirring dryer is also suitable for special materials such as alcohol residue, calcium carbonate and active clays.

Request a Quote

Technical Paramenters

model	direct heating clockwise flow Specification	direct heating clockwise flow Specification	heat directly countercurrent Specification	heat directly countercurrent Specification	complex heat	complex heat
kinds of raw material	ore	vesiccant	blast fumace	ammonium sulfate	phosphorus fertilizer	coal
amount to be treated kg/h	1000	466	15000	20000	12000	5000
primary moisture %	30	13	6	1.5	5	6.5
final moisture %	15	0.3	1	0.1	0.1	0.1
average diameter mm	6.5	0.05	4.7	0.5-1.7	0.5	5
bulk density of rawmaterial kg/m²	770	800	1890	1100	1500	750
amount of hot air kg/h	39000	5400	10750	9800	6500	16000
temperature of air at inlet ℃	600	165	500	180	650	570
temperature of raw material at outlet ℃		42	100	70	80	75
way of heating	gas	electric heating	heavy oil	fuel hot fumace	heavy oil	heavy oil
loading effciency %		6.3	7	7.5	7.8	18
revolution r.p.m	4	4	3.5	3	4	2
gradient m/m	0.04	0.005	0.03	0.05	0.05	0.043
quantity of stirring-up rake	12	24	12	22	outer of inner cylinder 8 inner of out cylinder 16	6 12
diameter of dryer m	2.0	1.5	2	2.3	out cylinder 2 inner cylinder 0.84	out cylinder 2.4 inner cylinder 0.95
length of dryer m	20	12	17	15	10	16
driving power kw	22	7.5	15	11	11	15

Features

High production capacity.
Low power consumption.
Highly versatile drying machine.
Stable and uniform drying.
