This series of vacuum plate dryer is made up of drying units that are highly efficient. These dryers are suitable for a variety of different industrial applications and they are produced in three main categories, normal pressure, closed and vacuum styles. With a drying area of 4 to 180 square meters, we have hundreds of models and various auxiliary devices to meet all of your drying requirements.

Material to be dried

Drying, heat decomposition, combustion, cooling, reaction, and sublimation
1. Organic chemicals
2. Mineral chemicals
3. Pharmaceutical and foodstuff
4. Feed and fertilizer

Request a Quote

Specification

Specification	Diameter/mm	Height /mm	Drying area m²	Power / KW	Specification	Diameter /mm	Height /mm	Drying area / m²	Power / KW
1200/4	1850	2608	3.3	1.1	2200/18	2900	5782	55.4	5.5
1200/6		3028	4.9	1.1	2200/20		6202	61.6	5.5
1200/8		3448	6.6	1.5	2200/22		6622	67.7	7.5
1200/10		3868	8.2		2200/24		7042	73.9
1200/12		4288	9.9		2200/26		7462	80
1500/6	2100	3022	8	2.2	Aug-00	3800	4050	48	11
1500/8		3442	10.7		Oct-00		4650	60
1500/10		3862	13.4		Dec-00		5250	72
1500/12		4282	16.1	3	3000/14		5850	84
1500/14		4702	18.8		3000/16		6450	96
1500/16		5122	21.5		3000/18		7050	108	13
Jun-00	2900	3262	18.5	3	3000/20		7650	120
Aug-00		3682	24.6		3000/22		8250	132
Oct-00		4102	30.8		3000/24		8850	144
Dec-00		4522	36.9	4	3000/26		9450	156	15
2200/14		4942	43.1	4	3000/28		10050	168
2200/16		5362	49.3	5.5	3000/30		10650	180

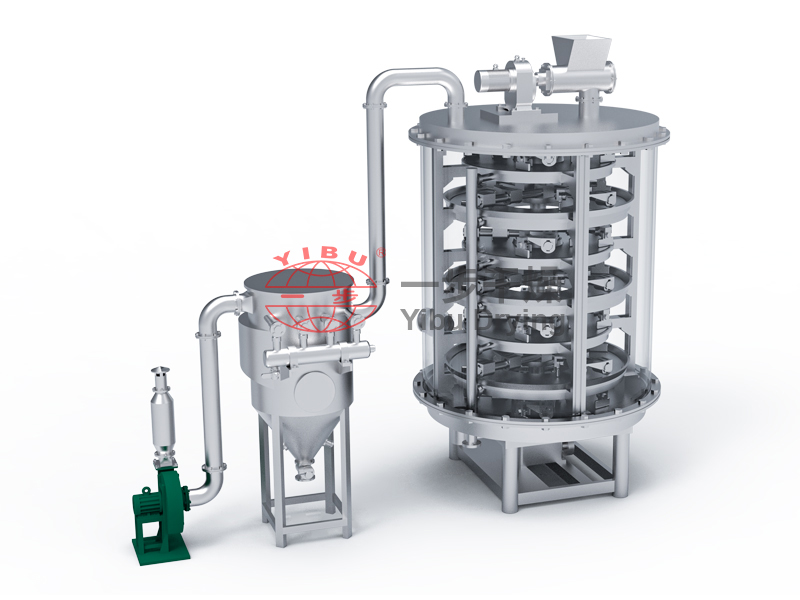

Working Principle

Wet materials are fed continuously through the top drying layer in the dryer. They are continuously stirred in the drying chamber while heat is introduced to the system and evaporated moisture is discharged at the top. The drying capability can be greatly increased by adding supplementary devices such as finned heaters, condensers for solvent recovery, bad dust filters and suction fans.

Characteristics

(1) Easy control, wide application

Regulate thickness of materials, rotating speed of main shaft, number of harrow arms, style and sizes harrows achieve for best drying processes.
Each layer of drying plate can be fed with hot or cold media individually to heat or cool materials.
Dwell time of materials can be accurately adjusted.
Single flowing direction of materials without return flowing and mixing for uniform drying.

(2) Easy and simple operation

Start/stop of dryer is simple
After material feeding is stopped, they can be easily discharged out of the dryer by harrows.

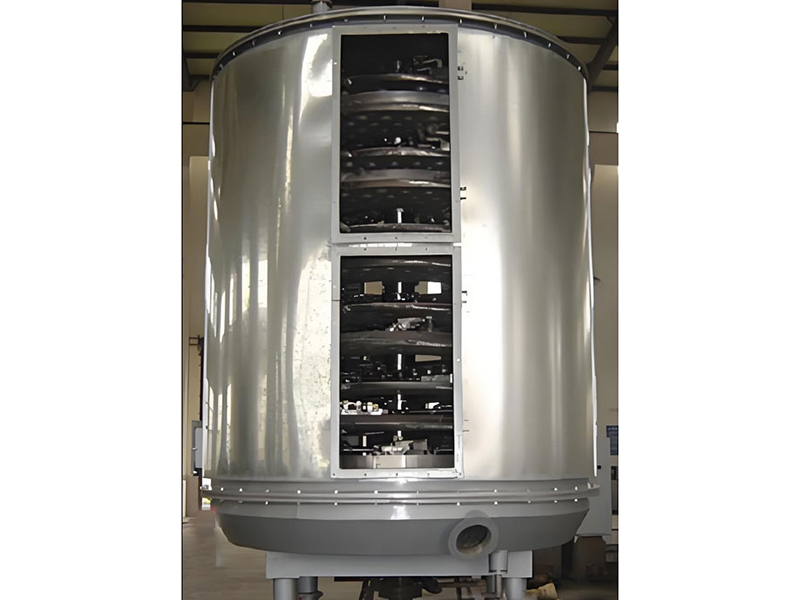

Careful cleaning and observation can be carried out inside the equipment through a large-scale viewing window.

(3) Low energy consumption

Low speed main shaft, small power and energy required for conveying system.
Dry by conducting heat so it has high heating efficiency and low energy consumption.

(4) Good operation environment, solvent can be recovered and powder discharge meets exhaust requirements

Normal pressure type: low speed air flow inside the equipment
Closed type: equipped with solvent recovery device that can recover organic solvent easily from moist carrier gas
Vacuum type: if the plate dryer is operating under a vacuum state, it is particularly suitable for drying heat sensitive materials.

(5) Easy installation and small occupying area.

Dryer is delivered in one piece for easy installation.
As drying plates are arranged by layers and installed vertically for a large drying surface area.

Drying plate

Design pressure: general is 0.4MPa, Max. can reach 1.6 Mpa.
Work pressure: general is less then 0.4Mpa, and Max. can reach 1.6 Mpa.
Heating medium: steam, hot water, oil. When the drying plates’temperature is 100℃, hot water can be used;
when 100℃~150℃, it will be saturated water steam ≤0.4Mpa or steam-gas, and when 150℃~320℃, it will be oil;
when >320℃ it will be heated by electricity.

Material transmission system

Headstock revolution: 1~10 rpm, electromagnetism of transducer timing.
Harrow arm: There are 2 to 8 pieces arm that be fixed on the headstock on the every layers.
Harrow blade: The blades float together to keep contact.
Roller: The rollers continuously rotate to prevent materials from clumping.

Shell

Normal pressure: N/A
Sealed: Cylindrical shell, can handle 5KPa.
Vacuum: Cylindrical shell, can bare exterior pressure of 0.1MPa.

Air heater

Normal for the application of large evaporation capacity to increase drying efficiency.
