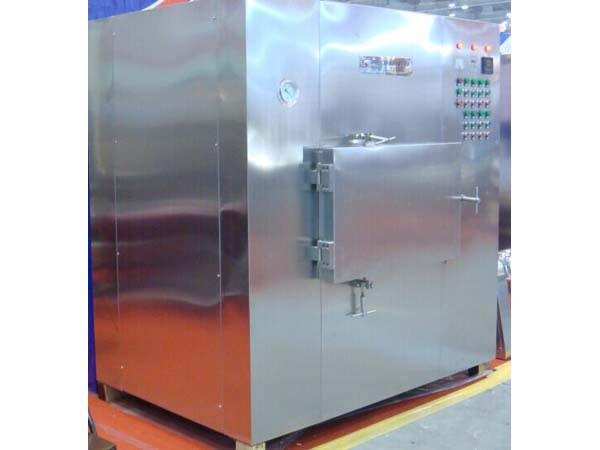

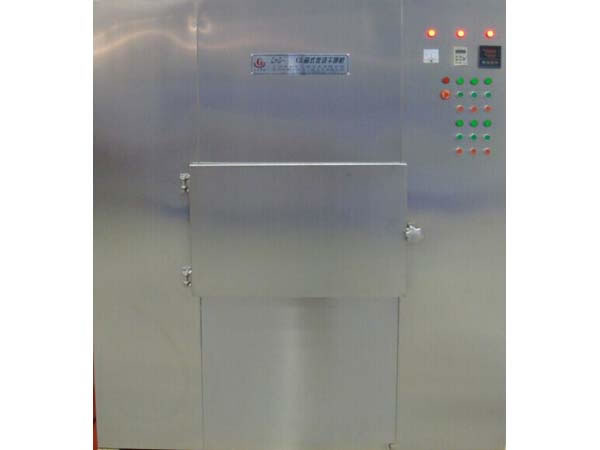

Microwave Vacuum Dryer

  •  Microwave Vacuum Dryer
  •  Microwave Vacuum Dryer
  •  Microwave Vacuum Dryer

The microwave vacuum dryer uses an electric heat source and can dry and sterilize materials under 250°C for long periods.

Parameters
Items/model HD-06R HD-10R HD-15R HD-24F HD-48F
Power(KW) 6 10 15 24 48
Frequency(MHz) 2450±15
Material spreading area(m2) 1 1.5 15-20 24-30 40-60
Evaporation capacity (kg/h) 6-9 10-13 15-20 24-30 40-60
Rotating speed (r/min) 0~5
Vacuum degree (MPa) ≥0.095
Leakage(mw/c) < 5 (complied with international standard)
Overall dimensions (L×W×H) 1500×1800×2100 1600×1800×2100 1850×2400×2200 3100×2700×2000 1500×1800×2200

Features

1. The parallel flow of hot air offers an excellent sterilization effect.

2. Automatic temperature control.

3. Automatic control procedures are: heating - drying -temperature stabilization – shut down.

4. This drying equipment is suitable for "GMP" management in the pharmaceutical industry to sterilize and dry materials.

As a professional industrial dryer manufacturer, we provide customized products according to your requirement.
