    Industrial Drying Equipment & System Solutions
    Indirect Contact Dryer
    Indirect Contact Dryer Indirect Contact Dryer Indirect Contact Dryer Indirect Contact Dryer
    Request a Quote

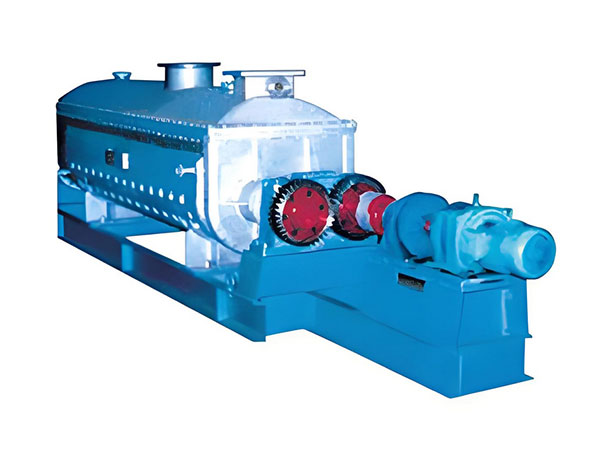

    Indirect Contact Dryer

    The indirect contact dryer is suitable for drying or cooling pastes, particles and powders in a slurry state. The special stirring blade features high heat transferring efficiency, providing a self-cleaning function.

    Hollow chock shaped blades are fitted on the hollow shaft where the heat media flows through the blade. The temperature range of the blade dryer is -40 ℃ to 320 ℃.

    Applications

    The large heating area in the drying unit dries the material very fast and it is suitable for a wide variety of different industrial applications.

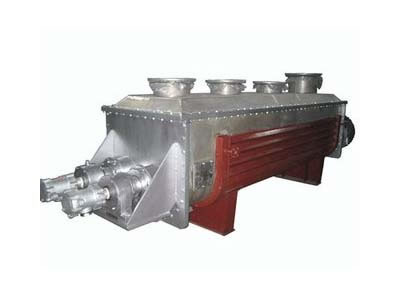

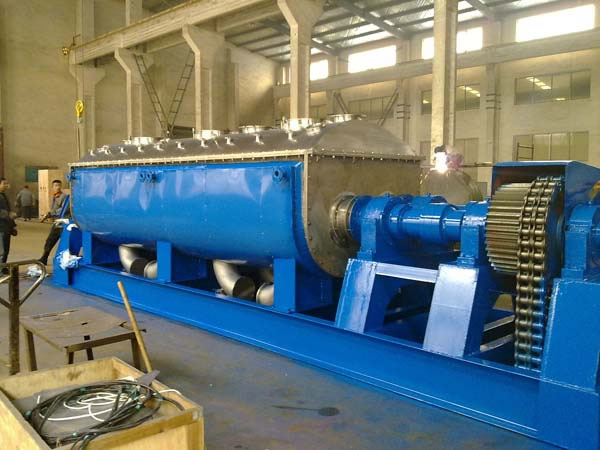

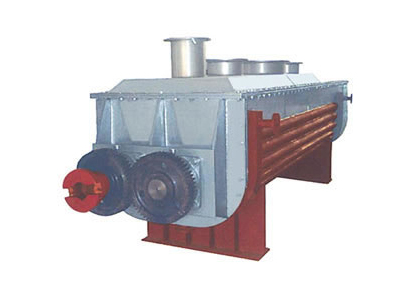

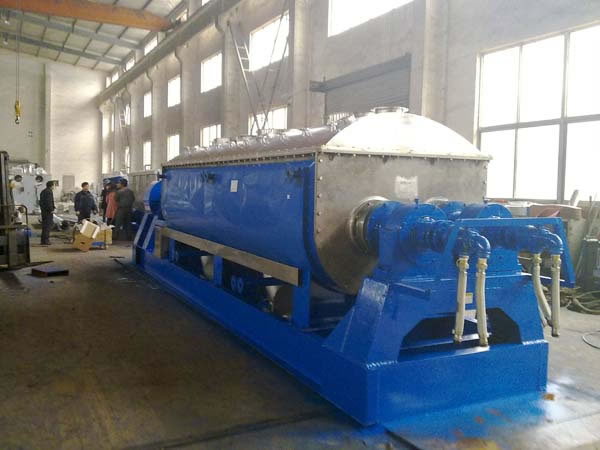

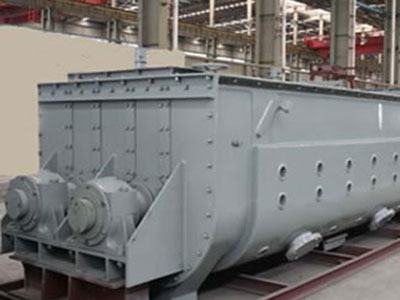

    Other Detailed Images
    • Fluid Bed Granulator
    • Fluid Bed Granulator
    • Fluid Bed Granulator
    Technical Paramenters
    Specification QJ3 QJ9 QJ13 QJ18 QJ29 QJ41 QJ52 QJ68 QJ81 QJ95 QJ110
    heat transferring area m2 3 9 13 18 29 41 52 68 81 95 110
    effective volume m3 0.06 0.32 0.59 1.09 1.85 2.8 3.96 5.21 6.43 8.07 9.46
    range of rotating speed r.m.p 15-30 10-25 10-25 10-20 10-20 10-20 10-20 10-20 5-15 5-15 5-10
    power kw 2.2 4 5.5 7.5 11 15 30 45 55 75 95
    width of vessel mm 306 584 762 940 1118 1296 1474 1652 1828 2032 2210
    total width mm 736 841 1066 1320 1474 1676 1854 2134 1186 2438 2668
    length of vessel mm 1956 2820 3048 3328 4114 4724 5258 5842 6020 6124 6122
    total length mm 2972 4876 5486 5918 6808 7570 8306 9296 9678 9704 9880
    distance of material inlet & outlet mm 1752 2540 2768 3048 3810 4420 4954 5384 5562 5664 5664
    height of center mm 380 380 534 610 762 915 1066 1220 1220 1220 1220
    total height mm 762 838 1092 1270 1524 1778 2032 2362 2464 2566 2668
    steam inlet "n" ( inch) 3/4 3/4 1 1 1 1 11/2 11/2 11/2 11/2 2
    water outlet "o" (inch) 3/4 3/4 1 1 1 1 11/2 11/2 11/2 11/2 2

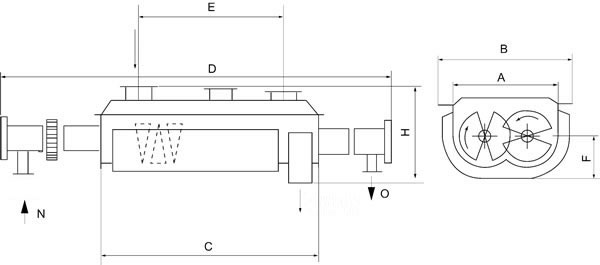

    Schematic of Structure
    Schematic of Structure
    Features
    • The heat consumption of blade is low: It consumes 1.2 kg of steam to evaporate 1kg of water to dry slurry materials.
    • The cost of the blade dryer is low: Efficiency is high and processing time is shortened.
    • The wide range of materials can be processed: Heat sensitive material and the materials to be processed under high temperature might be processed by applying different heating sources.
    • Low pollution: solvents can be easily collected and recirculated, especially when operating in a closed system.
    • Steady operation: The material particles fully contact the heat transferring surface for uniform drying.
