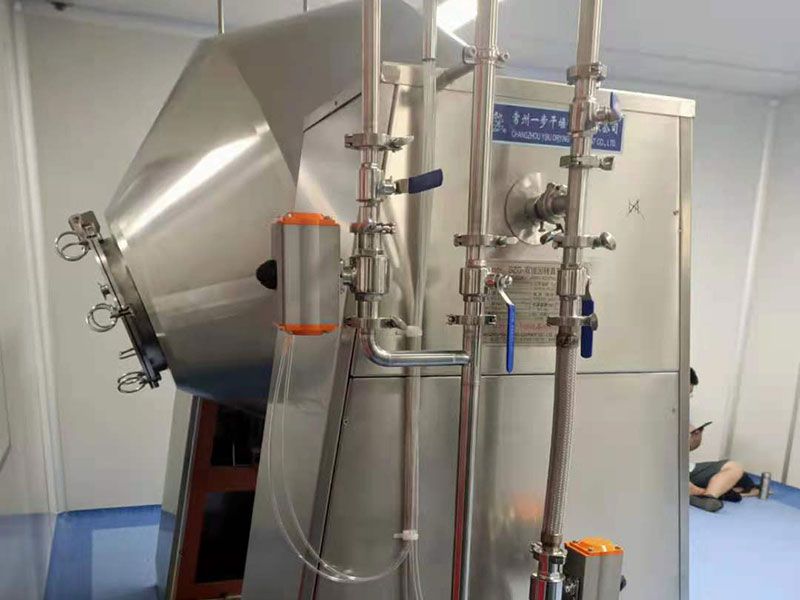

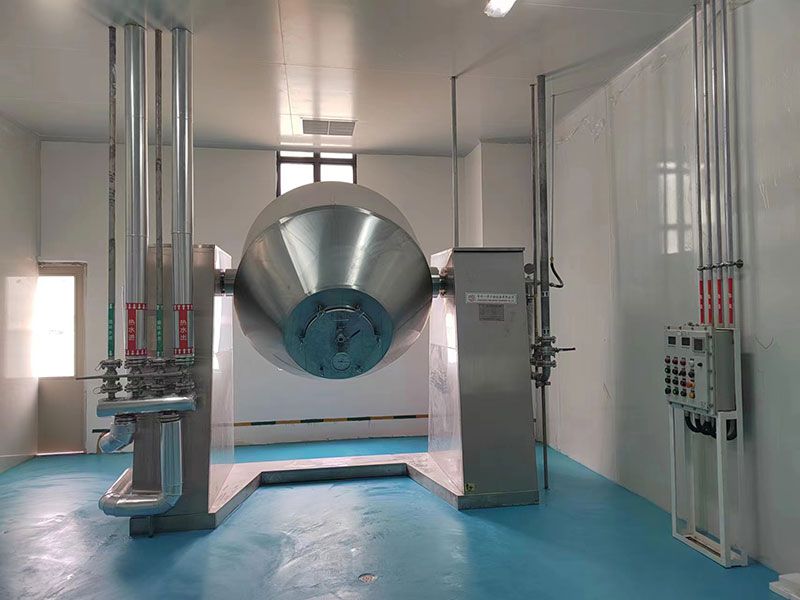

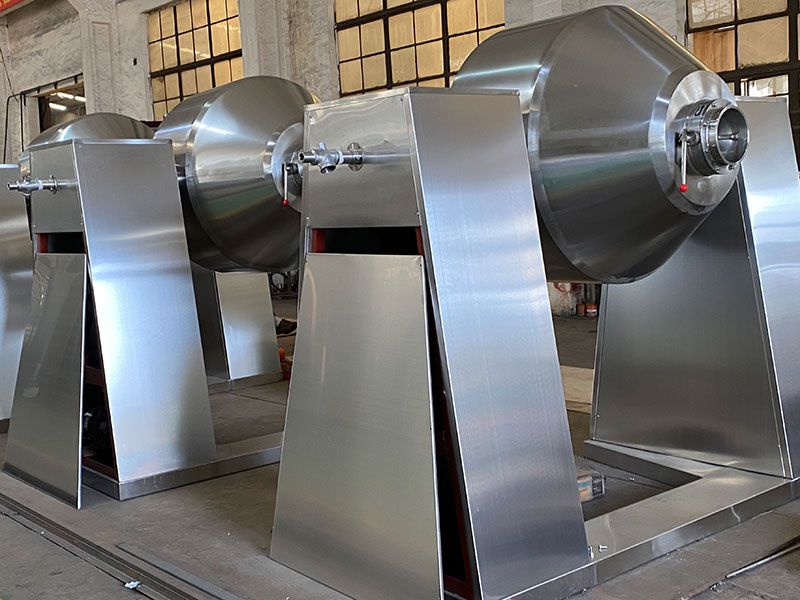

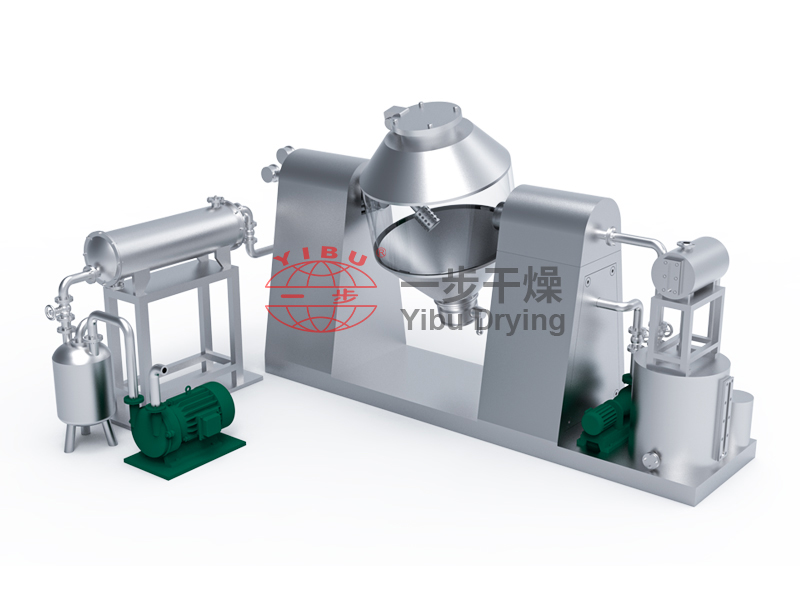

Double Cone Vacuum Dryer

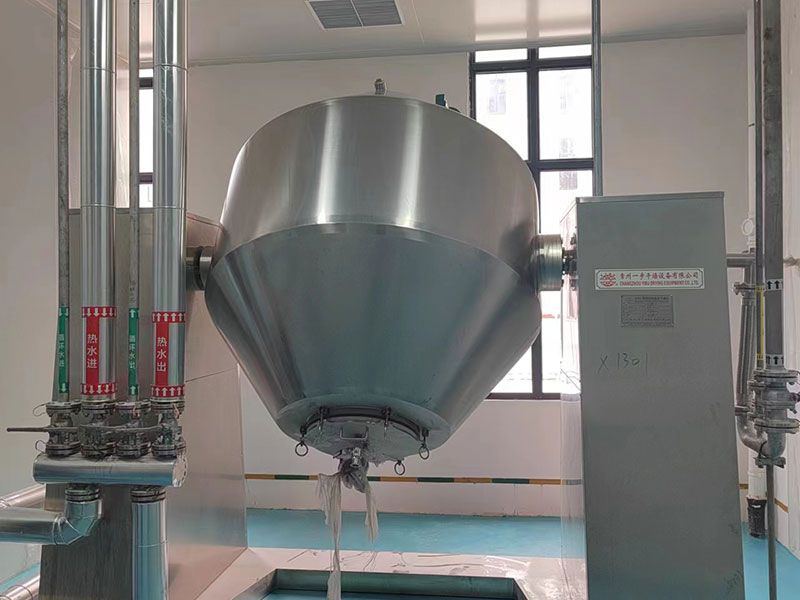

SZG Series Double Cone Vacuum Dryer

This vacuum drying system features efficiency and reliability necessary for material processing, making it a suitable tool for industries that handle delicate or sensitive products. Its dual-cone design ensures smooth and stable performance, using advanced vacuum technology to dry materials evenly while protecting them from contamination or degradation. The drying system is ideal for handling materials that require gentle, low-temperature drying, especially in applications where preserving the structure and quality of the product is important.

Request a Quote

Applications

The double cone vacuum drying system is ideal for industries like chemicals, pharmaceuticals, and food processing. It’s commonly used for concentrating, mixing, and drying powders, granules, and fibers, particularly when the materials are sensitive to heat, oxidation, or volatility. This makes it especially effective for drying biochemical products, volatile compounds, or materials that need to maintain their crystalline structure.

Specifications

Model	SZG-100	SZG-200	SZG-350	SZG-500	SZG-750	SZG-1000	SZG-1500	SZG-2000	SZG-3000	SZG-4000	SZG-5000
Total volume (L)	100	200	350	500	750	1000	150	2000	3000	4000	5000
Useful volume (L)	50	100	175	250	375	500	750	1000	1500	2000	2500
Heating area (m²)	1.16	1.5	2	2.63	3.5	4.61	5.58	7.5	10.2	12.1	14.1
Rotation speed (rpm)	6							5	4	4	4
Power (kW)	0.75	1.1	1.5	1.5	2	3	3	4	5.5	7.5	7.5
Rotation height (mm)	1810	1910	2090	2195	2500	2665	2915	3055	3530	3800	4180
Weight (kg)	825	1050	1350	1650	1800	2070	2250	3000	4500	5350	6000
Vessel inside pressure (Mpa)	-0.09~0.096
Jacket pressure (Mpa)	0.3

Features

The dryer features precise temperature control, allowing for safe drying within a range of 20°C to 160°C, ensuring optimal conditions for each material
With over twice the thermal efficiency of standard drying methods, this system reduces energy consumption while delivering consistent results
The indirect heating method prevents materials from coming into contact with contaminants, making it a safe option for sensitive products and ensuring compliance with industry hygiene standards
