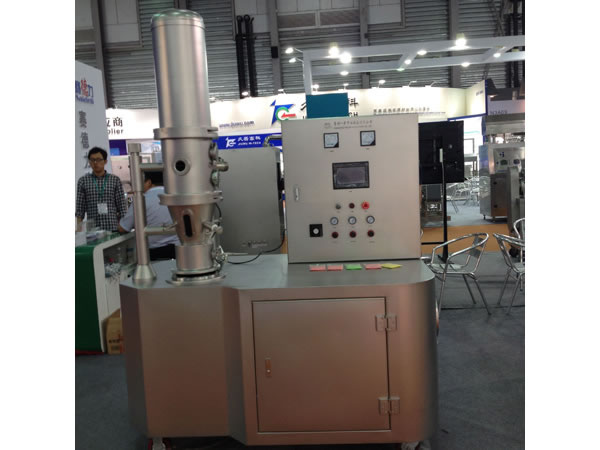

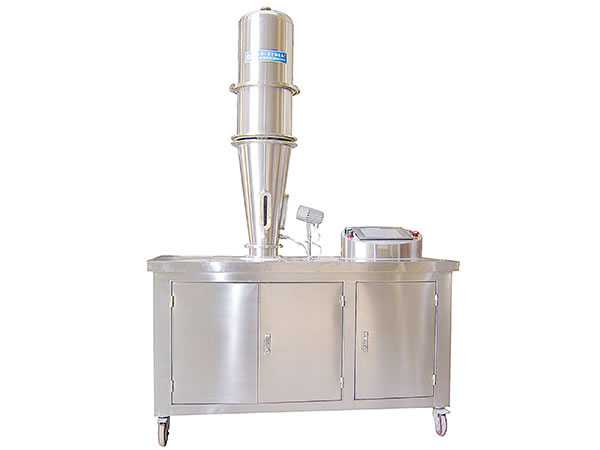

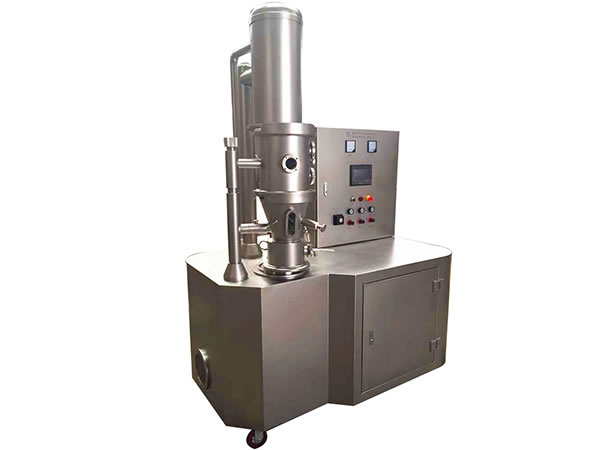

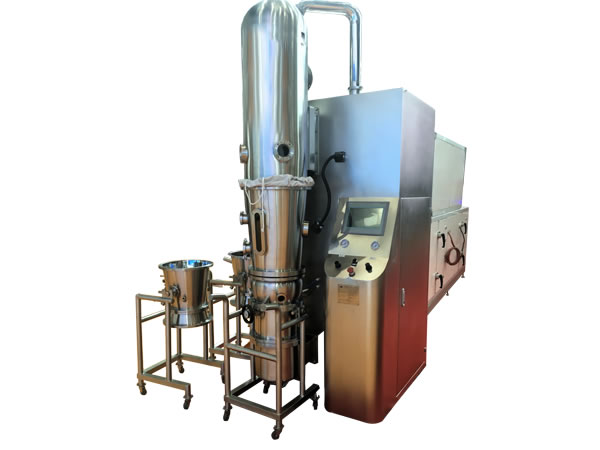

Fluid Bed Granulator Coater

  • Fluid Bed Granulator Coater
  • Fluid Bed Granulator Coater
  • Fluid Bed Granulator Coater

This series of fluid bed granulator coater integrates granulation, coating, fluidization and drying. It is mainly applied for granulating materials for pharmaceutical, chemical, foodstuff and other industrial applications. The processed granules are pressed into tablets and capsules, and fluid bed feed coater can be used to make flavorings.

Mixing: Various kinds of fluidizable materials, such as powder, granules, micro-granules, etc. Because of multi-dimensional movement (horizontal, tangent and radial direction), the mixing effect is very good.

Granulating: Spray adhesive onto powder to produce granules with various diameters.

Technical Parameters
Specification DLB- 5 15 30 60 120 300 500
max working capacity(L) up spray 22 45 100 420 620 1100 2000
down spray 15 35 90 400 550 900 1600
electric heater power (kw) 21 27 45 81 135 234 315
range of temperature (°C) 0-120automatically regulated
consume of steam (kg/h) 60 100 180 220 366 600 1000
power of fan (kw) 5.5 11 15 22 30 55 75
amount of compressed air (m3/min) 0.6 0.6 0.9 1.1 1.3 3.0 4.0
weight (kg) 1450 1800 2600 3450 4000 6500 8000
sizes A1 A2 A3 B C ΦD E1 E2 G
5 3210 3210 2810 2140 920 500 3260 2610 740
15 4060 4060 3660 2280 970 800 4100 3410 970
30 4400 4400 4000 2520 1130 1200 4600 3750 1420
60 4800 4800 4400 2900 1180 1400 5000 4100 1620
120 5100 5100 4700 3000 1380 1500 5300 4400 1620
300 5760 5760 5490 3465 1840 1800 6500 5090 1990
500 6630 6630 6360 4145 2145 2700 7590 5960 2960
