    Fluid Bed Granulator
    Fluid Bed Granulator Fluid Bed Granulator
    Request a Quote

    Fluid Bed Granulator

    The YIBU fluid bed granulator is a culmination of excellent mechanical design and manufacturing expertise. We have over 150 different granulation machines to meet the raw materials processing needs of our customers and we export the drying equipment to the USA, Japan, Indonesia and many other countries around the world.

    Applications
    • Pharmaceutical industry: tablet/capsule production
    • Drying: powder or granulation of wet material
    • Coating: protection layer, color, controlled release, film, coating of granules and pills.

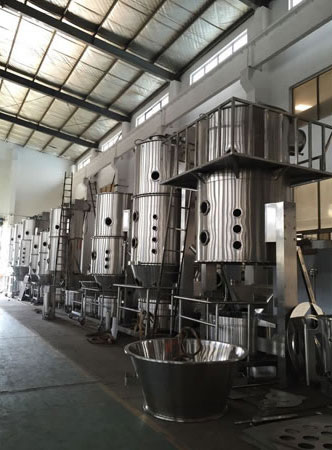

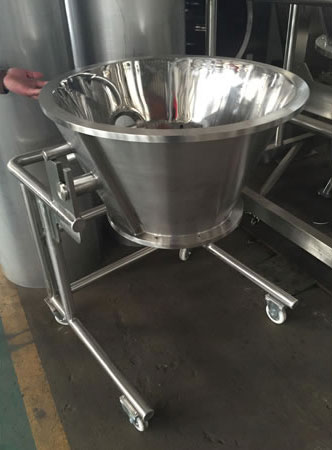

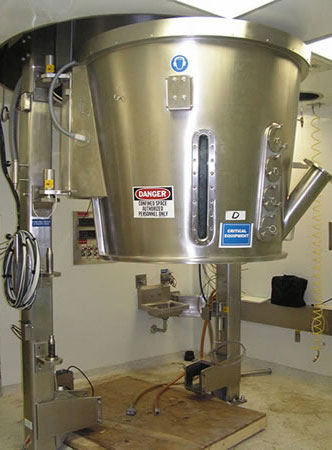

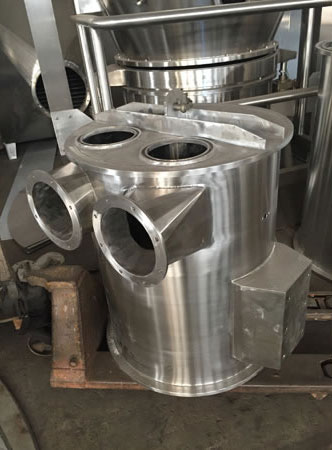

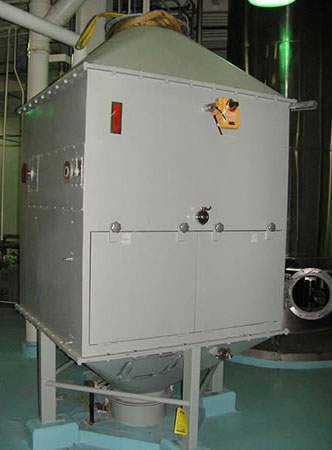

    Other Detailed Images
    • Fluid Bed Granulator
    • Fluid Bed Granulator
    • Fluid Bed Granulator
    • Fluid Bed Granulator
    • Fluid Bed Granulator
    Parameters
    Item Specification FL Series
    3 5 15 30 60 120 200 300 500 1000
    Vessel Volume L 12 22 45 100 220 420 670 1000 1500 3000
    Diameter mm 300 400 550 700 1000 1200 1400 1600 1800 2200
    Production capability Min kg 1.5 4 10 15 30 80 100 150 250 800
    Max kg 4.5 6 20 45 90 160 300 450 750 1200
    Fan Velocity m3/h 1000 1200 1400 1800 3000 4500 6000 7000 8000 13670
    Pressure mmH2O 375 375 480 480 950 950 950 950 950 1400
    Power KW 3 4 5.5 7.5 11 18.5 30 37 45 90
    Steam consumption kg/h 15 23 42 70 141 211 282 366 451 750
    Compressed air consumption m3/min 0.9 0.9 0.9 0.9 1 1 1.1 1.5 3 4
    Weight kg 500 700 900 1000 1100 1300 1500 1800 2500 3500
    Steam pressure MPa 0.1-0.4
    Temperature ℃ Between room temperature to 120℃
    Operation time min 45-90 (depends on raw materials)
    Collect rate % ≥99
    Noise level DB(A) ≤75db(A).
    Size (l×w×h) M 1.0×0.6×2.1 1.2×0.7×2.3 1.25×0.9×2.5 1.6×1.1×2.5 1.85×1.4×3 2.2×1.65×3.3 2.34×1.7×3.8 2.8×2.0×4.5 3×2.25×5.0 4×2.8×7.2
    Machine Principle

    The powder granule in the fluid bed is preheated and mixed with clean heated air. The process dries materials and adhesives can be applied to stick granules together, forming uniform and porous granules.

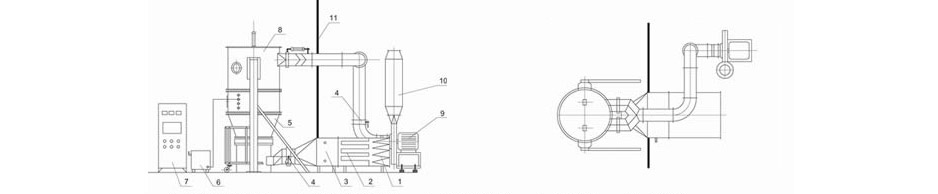

    Fluid Bed Granulator
    • 1. Primary & medium efficiency filter
    • 2. Sub-high efficiency filter
    • 3. Steam heater
    • 4. Air door
    • 5. Fluid bed
    • 6. liquid trolley
    • 7. Control cabinet
    • 8. Dust collector
    • 9. Fan
    • 10. Silencer
    • 11. Separated wall
    Features
    • The material flow ability is improved and dust is reduced because of the excellent granulation effects.
    • Thanks to powder granulating, solubility of materials is improved. The mixing, granulating and drying processes are completed in one step inside the machine.
    • The operation is safe thanks to the anti-static filter cloth.
    • Loading and unloading are quick, clean processes, meeting GMP requirements.
