FG Series Hot Air Dryer

  •  FG Series Hot Air Dryer
  •  FG Series Hot Air Dryer

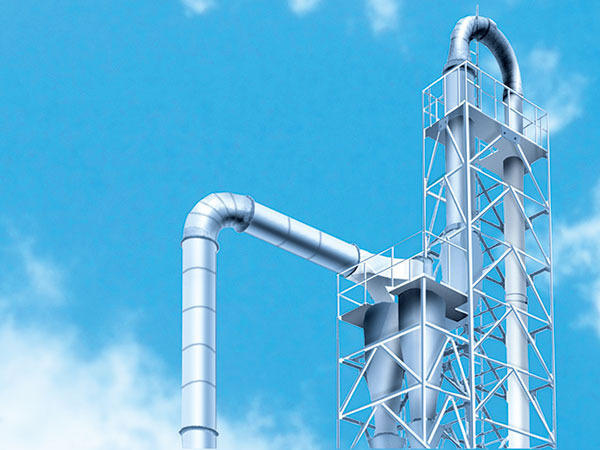

The FG series hot air dryer uses a cycling flow of hot air under negative pressure to dry material. The drying equipment allows for complete adjustment of the air speed and temperature, making it extremely versatile.

Applications
The air dryer is widely used for drying granules and powders for food, chemical, pharmaceutical and construction materials industries. Some of the common products processed by the hot air dryer include starch, glucose, sugar, feed, coal powder and many other products.

Parameters
Model Drying capacity (kg/h) Power(kw) Floor space/m2 Thermal efficiency
FG0.25 113 11 3.5*2.5 >60
FG0.5 225 18.5 7*5 >60
FG0.9 450 30 7*6.5 >60
FG1.5 675 50 8*7 >60
FG2.0 900 75 11*7 >60
FG2.5 1125 90 12*8 >60
FG3.0 1150 110 14*10 >60
FG3.5 1491 110 14*10 >60

Machine Principle
First the raw material is dried by mixing through air flow and then the recycled air is heated and the chamber is placed under negative pressure.
