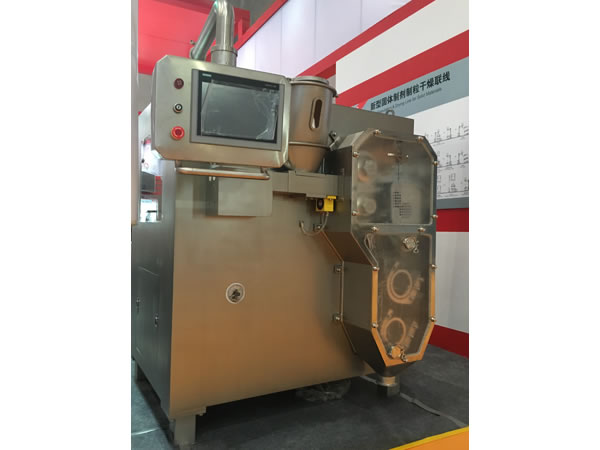

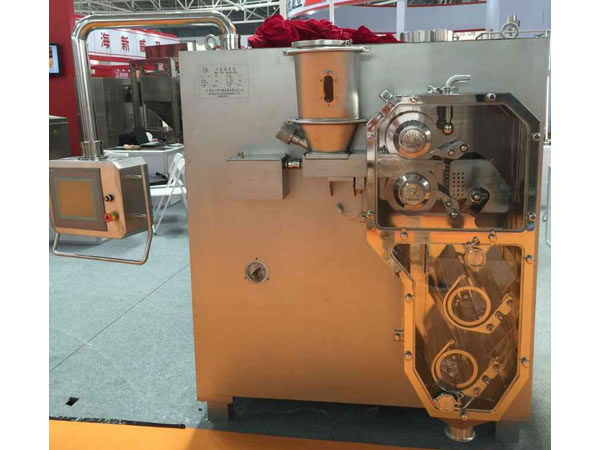

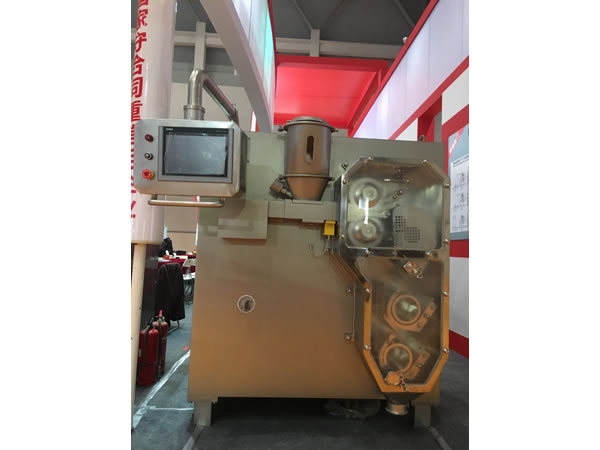

The dry granulator is a piece of equipment that we have developed that is designed for extrusion, pulverizing and granulating materials all while operating with high efficiency.
Application
The dry granulator is widely used for material granulating in the pharmaceutical industry, foodstuff industry and chemical industry. It is particularly suitable for materials that are easily decomposed or stick together when they are introduced to moisture and heat.
Parameters| Items | LG-40 | LG-70 | LG-100 | LG-150 | LG-200 | LG-250 | LG-300 | |
| Max production capacity (kg/h) | 40 | 70 | 100 | 150 | 200 | 250 | 300 | |
| Mesh number | 10~30 | |||||||
| Total power (kw) | 6.87 | 9.52 | 12.97 | 14.97 | 14.97 | 21 | 21 | |

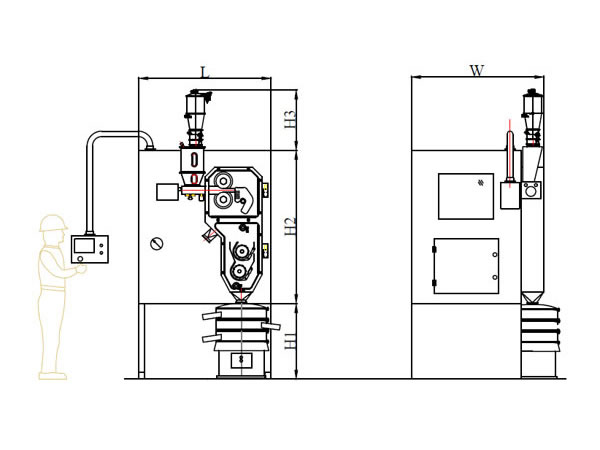

| Dimension (mm) | L | 900 | 1100 | 1450 | 1450 | 1450 | 1500 | 1500 |
| W | 800 | 1000 | 1450 | 1500 | 1550 | 1600 | 1650 | |
| H1 | 800 (It can also be customized according to your requirement) | |||||||
| H2 | 1200 | 1400 | 1600 | 1600 | 1600 | 1800 | 1800 | |
| H3 | 1000 (It can also be customized according to your requirement) | |||||||
| Weight (kg) | 500 | 600 | 1000 | 1200 | 1350 | 1800 | 2000 | |
Process Flow:
After mixing, the powder enters into the feeding silo from the top feeding port. The powder is delivered into the extruding device. By the force of two pressure extruding gears, the powder material becomes flattened into a thin flake. Through the two-grade milling system, it makes the thin flake material into the desired granule, and then finishes the granulating process.
The machine features a compact structure and is easy to clean and operate. We have employed the newest rolling control technology for this granulation equipment that adjusts its operation based on the material being processed. The roller compactor has various process parameters that can be quickly adjusted (capacity, flake density, rolling pressure, speed, etc.). This allows the machinery to produce high quality granules, improving stability and solubility of the granule.
