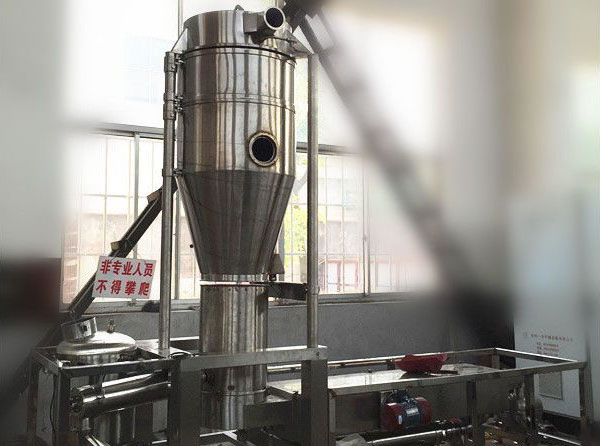

Continuous Granulator

 Continuous Granulator

Application:
The continuous granulator was designed by YIBU for small volume, high efficiency, energy saving granulation of various materials.
Pharmaceutic industry: the granulation for tablets, loose granules, capsules and so on.

Granule Data for Several Typical Materials
Name Adzuki beans powder Soybean Milk powder Starch Gastric granule VC powder Yankening White Carbon black
Size of raw powder (mesh) < 100 80 ~ 150 < 200 < 1 5 0 < 120 < 100 < 200
Initial moisture (% ) 4 5 3 4 1.5 5 5
Temperature inside the granulating chamber (0 C ) 5 5 6 0 60 6 0 5 5 55 6 0
Granulating time(minute) 5 6 5 7 7 15 7
Drying time (minute) 14 15 15 15 15 18 15
Particle range (mesh) 10 ~ 40 15 ~ 40 15 ~ 6 0 15 ~ 40 15 ~ 40 14 ~ 26 10 ~ 40
Granule rate (% ) 100 100 100 100 100 100 100
Moisture of granule (% ) 3 4 5 5 1 .5 5 4
Particle density (kg/ cm 2 ) 2 .5 2 .6 3 2. 8 2. 7 3.5 2. 7

Main Characteristics:
Material Feeding → Granulating → Drying → Grading →Finished Product Discharge. The whole process runs continuously.
The whole process is carried out in a closed state, avoiding the release of dust.
The size of the finished granules is uniform.
The heating time for the material is short, avoiding any unwanted thermal reaction.
High production efficiency, less consumption of energy, lower production costs.
Disassembling and installation are very simple. It is very convenient for maintenance and cleaning.
In summary, the continuous granulator has amazing granulating and drying properties all while operating with incredible efficiency.

Work Machine Principle:
The powder is fed into the granulating chamber through the material feeding system. Because of the exposure to hot air, the powder is in a fluid state inside the granulating chamber. When the powder in the granulating chamber reaches a certain concentration, the atomizing system begins to spray the rationing liquid. When the powder makes contact with the liquid, the powder will develop surface tension, and begin to agglomerate. The size of the granule becomes bigger and bigger and will eventually fall into the drying chamber through a hollow throat. After some time, the granule will reach the discharge port. The qualified granules will be discharged after grading, and the unqualified granules will return to the granulating chamber for further granulation.

The most beneficial characteristic of the granulating machine is that it can complete all the granulating, drying and grading process in one continuous process. In this case, the process can avoid material loss and air pollution and meet the requirements of GMP thanks to its fully enclosed design.
