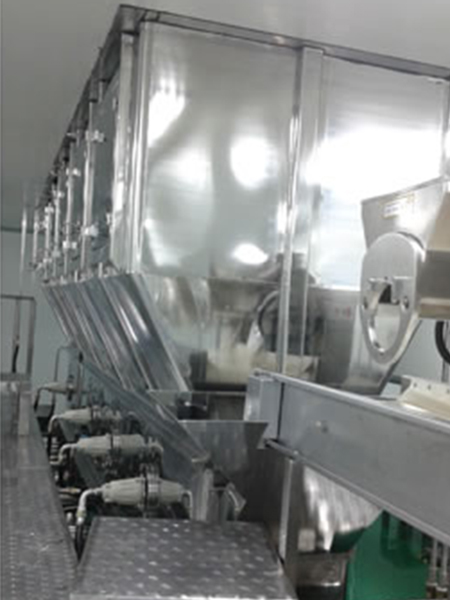

XF Series Fluid Bed Dryer

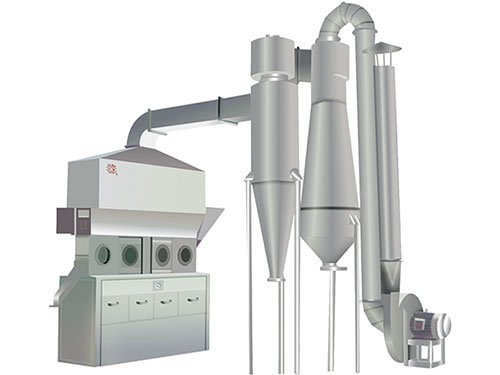

The series fluid bed dryer is a common piece of equipment found in pharmaceutical applications. It consists of an air filter, fluid bed and cyclone separator. There are two kinds of operation for this machine, continuous and intermittent.

Applications

This equipment is used for the drying processes of various medicines, grain processing and many other applications. The ideal material diameter range is 0.5-3mm.

Request a Quote

Parameters

Model/items	Drying capacity kg/h	Power of fan	Air pressure /Pa	Air amount m³/h	Temperature of inlet air /℃	Max consumption /J	Way to feed materials
XF10	10-15	7.5	5.5×103	1500	60-200	2.0×10⁸	1. unloading valve 2. Pneumatic conveying
XF20	20-25	11	5.8×103	2000	60-200	2.6×10⁸
XF30	30-40	15	7.1×103	3850	60-200	5.2×10⁸
XF50	50-80	30	8.5×103	7000	60-200	1.04×10⁹

Notes: The drying capacity is measured under such conditions: the primary moisture of crystal of plum is 20% and its final moisture is 5% and the temperature of air inlet is 130℃. The Drying capacity of other raw materials depends on the actual condition. While choosing models, please note that: Model A should be equipped with cyclone separator; Model B with internal dust collector; Model C with cyclone separator and dust collector.

Installing chart

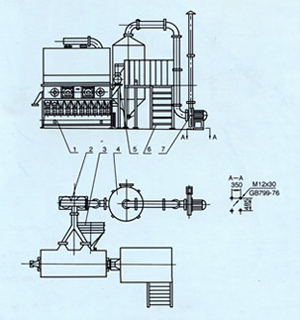

Cyclone separator with dust collector

1. Main machine
2. Cyclone separator
3. Heater
4. Dust collector
5. Feeder
6. Operating platform
7. Fan

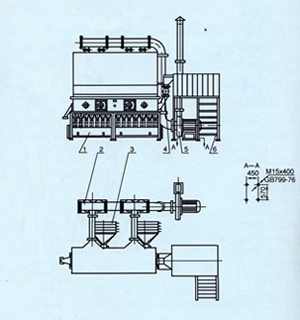

Cyclone separator

1. Main machine
2. Cyclone separator
3. Heater
4. Feeder
5. Fan
6. Operating platform

Machine Principle

The filtered hot air enters the fluid bed through a distributor valve plate and wet material is fed from the feeder. The drying machine effectively removes the moisture from the wet material and leaves behind dry materials.
