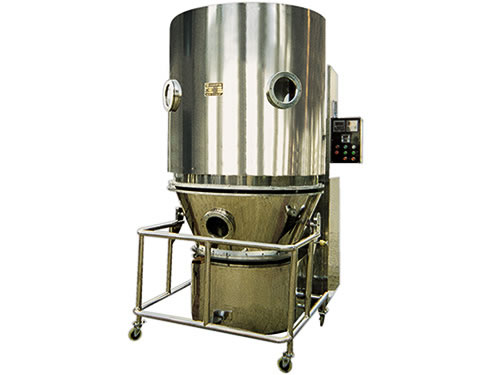

GFG Series Fluid Bed Dryer

 GFG Series Fluid Bed Dryer

The GFG series fluid bed dryer uses purified and heated air introduced from the bottom of the chamber with a suction fan. Fluidization of raw materials is possible through stirring and negative pressure within the chamber. Moisture is then quickly evaporated and removed for high quality material drying.

Parameters
Items Specification
Production capacity kg 60 100 120 150 200 300 500 1000
fan velocity m3/h 2361 3488 4000 4901 6032 7800 10800 15000
air pressure mmH2O 594 533 533 679 787 950 950 1200
power kw 7.5 11 15 18.5 22 30 45 75
Power of agitator kw 0.55 0.55 0.55 0.55 0.75 1.5 1.5 2.2
mixing speed rpm 11
Air consumption kg/h 141 170 170 240 282 366 451 800
Operation time min 15-30 (depends on raw materials)
Height mm 2700 2900 2900 2900 3300 3800 4200 5800

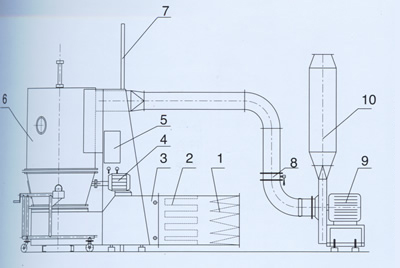

Installing chart

1. Filter
2. Sub-high efficiency filter
3. Heater
4. Motor
5. Control cabinet
6. Dust collector
7. Separated wall
8. Air door
9. Fan
10. Silencer

Features
PThe structure of the fluidization bed is round so as to avoid dead corners that would be difficult to clean.
Inside the hopper there is a stirring device in order to avoid agglomeration of raw material.
The granules are discharged through the method of turning over. The discharged system can be custom designed as well.
