Fluid Bed Dryer
Fluid Bed Dryer Fluid Bed Dryer

GZQ Series Fluid Bed Dryer

Applications

The series fluid bed dryer is used for drying and cooling of powder or granular materials such as citric acid, monosodium glutamate and many others.

Request a Quote
Other Detailed Images
  • Fluid Bed Granulator
  • Fluid Bed Granulator
  • Fluid Bed Granulator
Technical Paramenters
Specification Fluid bed Size Power of motor (kw) Weight (kg)
W L A B C
3×30 300 3000 3505 450 1050 0.37×2 1240
3×45 300 4500 5005 450 1050 0.75×2 1570
6×45 600 4500 5005 750 1350 1.1×2 1967
6×60 600 6000 6510 750 1350 1.1×2 2743
6×75 600 7500 8010 750 1750 1.5×2 2886
9×60 900 6000 6510 1050 1750 1.5×2 3540
9×75 900 7500 8010 1050 1750 2.2×2 4219
12×75 1200 7500 8010 1400 2200 3×2 5223
15×75 1500 7500 8010 1700 2500 4×2 6426
18×80 1800 8000 8520 2000 2800 4×2 8600

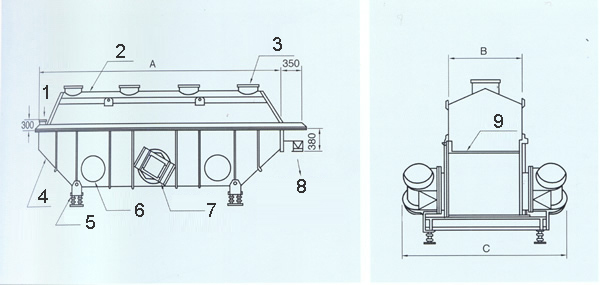

GZQ Series Fluid Bed Dryer

1. Feeding inlet
2. Upper cover
3. Air outlet
4. Main body
5. Anti-vibration spring

6. Air inlet
7. Vibration motor
8. Discharge port
9. Fluid Bed

Features
  • Long service life with smooth and convenient operation.
  • The state of fluidization is uniform for consistent drying and cooling.
  • Adjustment is convenient for various thicknesses of material and speed.
  • The structure is fully sealed to prevent cross pollution and to maintain a clean working environment.
  • Compared to ordinary dryers, the series fluid bed dryer saves 30-60% of the energ
