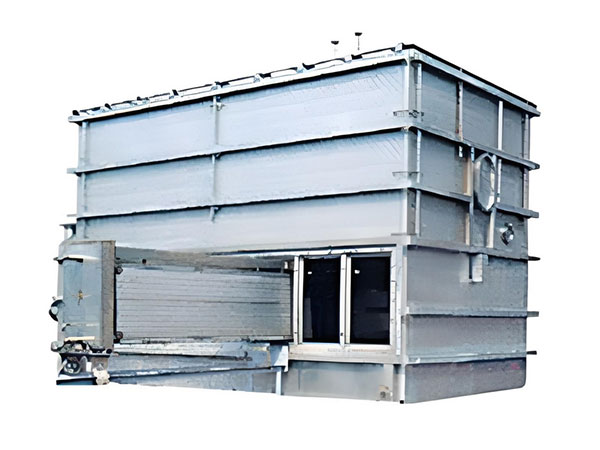

NLG Series Fluid Bed Dryer

The NLG series fluid bed dryer is designed based on traditional fluid bed dryers with components of indirect heating dryers. The heat exchanger is immersed in the heat exchanger in the material that is being fluidized and dried. The air velocity required to dry the material is lower compared to other drying units. Power consumption and heat loss are greatly reduced, making this equipment highly efficient.

Request a Quote

Applications

Applicable materials: Hydrogenated amines, ammonium nitrate, calcium chloride, calcium formate, calcium gluconate, calcium sulfate, cellulose derivatives, diammonium phosphate, calcium phosphate, fertilizer granule, Hydroquinone, ferric sulfate, ethylene, propylene, polystyredne ethylene, potassium carbonate, potassium chloride, potassium nitrate, potassium phosphate, sodium potassium tartrate, sodium chloride, PVC sodium bicarbonate, sodium bromide, sodium forate, sodium perborate, sodium sulfate, trataric acid, terephthalic acid, urea, vitamins, Barium sulfate, magnesium sulfate, zinc sulfate, aluminum sulfate, nickel sulfate, ammonium sulfate, salt, sodium fluoride, titanium dioxide, potassium bromide, ammonium bromide, sodium carbonate, basic nickel carbonate, basic zinc carbonate, basic chromium carbonate, calcium carbonate, sodium metasilicate, sodium dichromate, potassium acetate, potassium sodium benzene, formaldehyde acryloyl monomer, polyacrylamide amine, 1010, polypropylene resin, polyester chips, polytetrafluoroethylene, phenolic resin, soil neomycin, tetracycline, anhydride cool factors, humic acid, humic acid sodium, lysine.

Technical Paramenters

Specification	fluidized area( ㎡ )	power ( kw)	steam pressure ( mpa)	steam consumption(kg/h)	tem. of inlet air ( ℃)	overall dimension (LxWxH) mm	occupying area ( ㎡ )
NLG2.0	2	50	0.2-1.0	400-1000	100-300	3000x1300x4500	45
NLG2.5	2.5	65	0.2-1.0	600-1200	100-300	3500x1300x4500	55
NLG3.0	3	85	0.2-1.0	1400-2200	100-300	3600x1400x4500	65
NLG3.5	3.5	95	0.2-1.0	1000-2000	100-300	4000x1500x4500	80
NLG4.0	4.0	110	0.2-1.0	1200-2000	100-300	4600x1600x5000	90
NLG5.5	5.5	130	0.2-1.0	1400-2200	100-300	5000x1650x5000	100
NLG6.0	6	140	0.2-1.0	1600-2800	100-300	6000x1700x5000	110
NLG7.0	7	165	0.2-1.0	1800-3200	100-300	6600x1750x5000	120
NLG8.0	8	170	0.2-1.0	2000-2800	100-300	7500x1800x5000	130
NLG10	10	210	0.2-1.0	2400-3600	100-300	10000x1850x6000	140
NLG15	15	300	0.2-1.0	3200-4400	100-300	15000x1900x6500	200
NLG20	20	320	0.2-1.0	4000-6000	100-300	20000x2000x7000	240

Features

Energy saving, low running cost.
The amount of drying air is less, the power consumption is low.
The drying capacity is high within the small volume equipment.

High operation flexibility.
Special air distributing board to avoid leakage of material.
Adopt two grades of dust filter to meet exhaust requirements.
