    Square Sifter, Vibratory Sifter
    Square Sifter, Vibratory Sifter Square Sifter, Vibratory Sifter

    Square Sifter, Vibratory Sifter

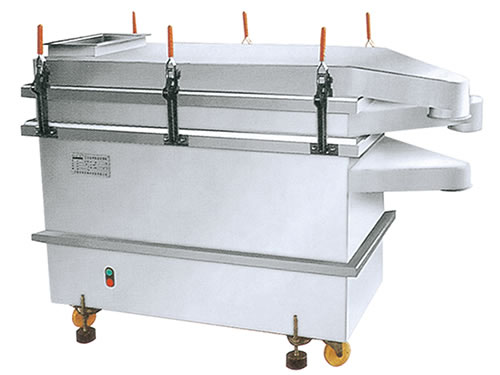

    The square sifter or vibratory sifter consists of a screen box, vibration unit and a shock absorber. There are 4-6 sets of flexible rubber shock absorber connected between the base and screen box. Centrifugal force is generated upon initiating the machine.

    Request a Quote
    Technical parameters
    Specification capacity (Kg/h) meshes (mesh) power (kw/h) vibration frequency (r/min) vibration power (KN) height of upper exit height of mid exit height of low exit overall dimension (LxWxH) weight(kg)
    FS-0.7m 2 -x 650 2-150 0.2x2 1400 0-2.5x2 850 750 530 1700x680x1100 280
    FS-0.8m 2 -x 750 2-150 0.2x2 1400 0-2.5x2 850 750 530 1600x830x1150 320
    FS-1.2m 2 -x 1100 2-150 0.4x2 960 0-5x2 880 760 520 1900x980x1220 450
