    Industrial Drying Equipment & System Solutions

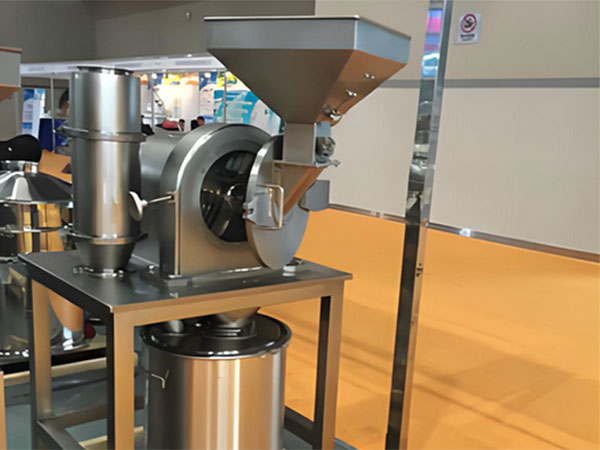

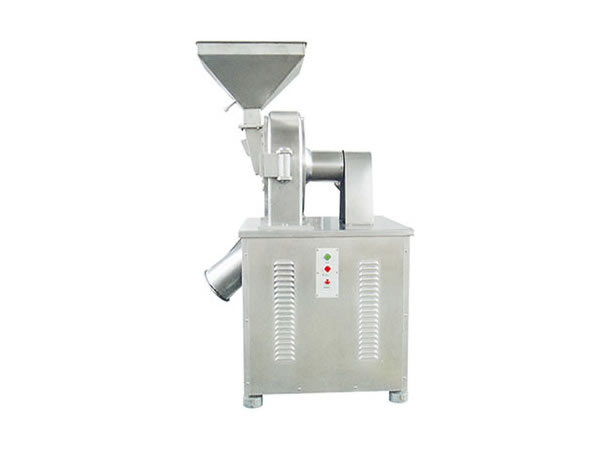

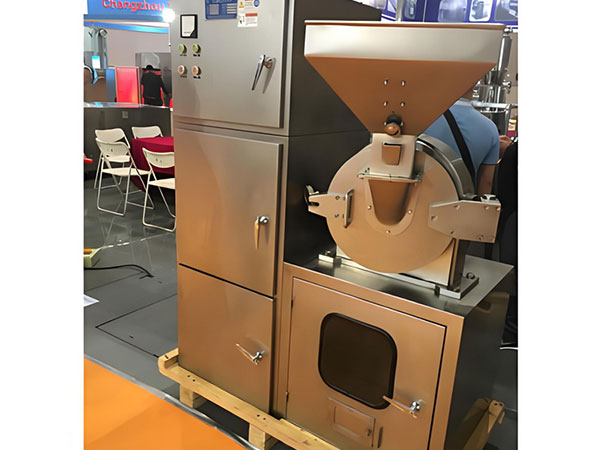

    High Effect Industrial Grinder
    High Effect Industrial Grinder High Effect Industrial Grinder High Effect Industrial Grinder High Effect Industrial Grinder

    High Effect Industrial Grinder

    The high effect industrial grinder set is extensively used as a grinding line for pharmaceutical, chemical, food and pesticide industries for pulverizing dry brittle materials.

    Request a Quote
    Technical parameters
    Specification unit 20B/20Bset 30B/30Bset 40B/40Bset 60B/60Bset
    productive capacity (kg/h) 60-150 100-300 160-800 500-1500
    speed of main shaft ( r/min ) 4500 3800 3400 2800
    feeding granule size ( mm ) 6 10 12 15
    fineness of pulverization ( mesh ) 60-150 60-120 60-120 60-120
    grinding motor power ( kw ) 4 5.5 11 15
    fan power ( kw ) 1.5 1.5 1.5 2.2
    weight ( kg ) 250 320 550 680
    ( LxWxH ) overall dimension ( mm ) 550x600x1250 600x700x1450 800x900x1550 1000x900x1680
    ( LxWxH ) overall dimension( set ) ( mm ) 1100x600x1650 1200x650x1650 1350x700x1700 1550x1000x1750
