Square Cone Blender

  •  Square Cone Blender
  •  Square Cone Blender
  •  Square Cone Blender

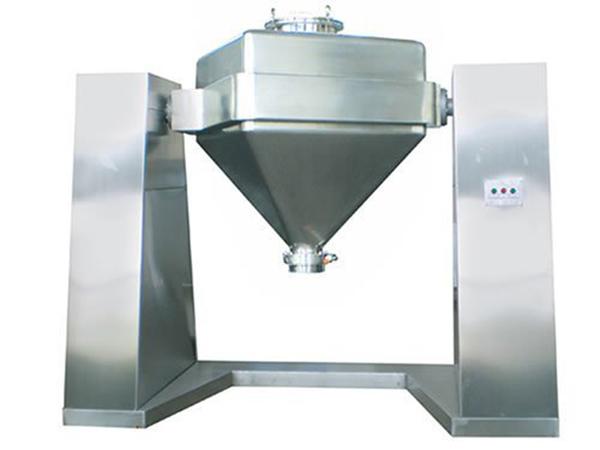

Materials are charged into a closed square-cone mixing barrel. The symmetrical axes of hopper and the axes of rotating shaft form an included angle. Materials with different constituents are strenuously rolling over in the closed hopper and producing high shear to achieve the best effect of mixing. The whole machine features novel design, compact structure, and good appearance. The evenness of mixing reaches 99%, and the volume charge coefficient reaches 0.8.


Specification FZH-1500 FZH-2000
total volume (L) 1500 2000
charge volume (L) 1050 1400
charge weight (kg) 750 1000
rotation speed of main shaft (r/min) 10 8
motor power (kw) 5.5 7.5
inlet diameter(mm) 560 560
outlet diameter(mm) 200 200
overall dimension ( mm ) 2800 2915 3800
(W) 2300 2500
(H) 2950 3200
weight (kg) 1500 2000

Main Advantages
1. Low rotating height, smooth running, reliable performance, easy operation.
2. Highly polished inner and outer surfaces of the barrel without dead comer
3. Easy to discharge materials
4. Easy to clear, no cross contamination.
5. Confining to the requirement of GMP
