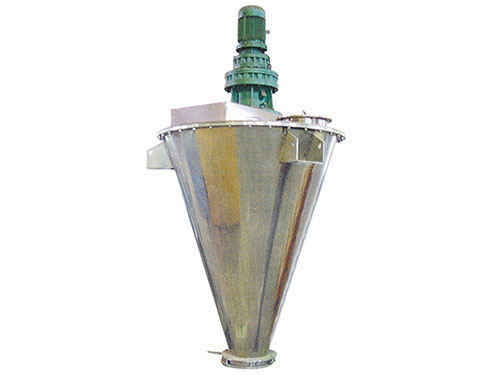

The conical screw mixer is a high-efficiency precision mixer used for material blending operations in the pharmaceutical, chemical and food industries.
Parameters
| spec | DSH0.3 | DSH0.5 | DSH1 | DSH2 | DSH4 | DSH6 | DSH10 |
| total volume(m3) | 0.3 | 0.5 | 1 | 2 | 4 | 6 | 10 |
| feeding rate | 0.4 -- 0.6 | ||||||
| diameter of materials to be mixed(um) | 40 -- 3000 | ||||||
| operation condition | Ambient temperature,normal pressure,sealed to dust | ||||||
| production capacity(kg)p=1g/cm3 | 180 | 300 | 600 | 1200 | 2400 | 3600 | 6000 |
| power(kw) | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 20.7 | 30.7 |
| time of mixing(min) | 4 -- 10(Special material to be determined by trial) | ||||||
| weight(kg) | 500 | 1000 | 1200 | 1500 | 2800 | 3500 | 4500 |

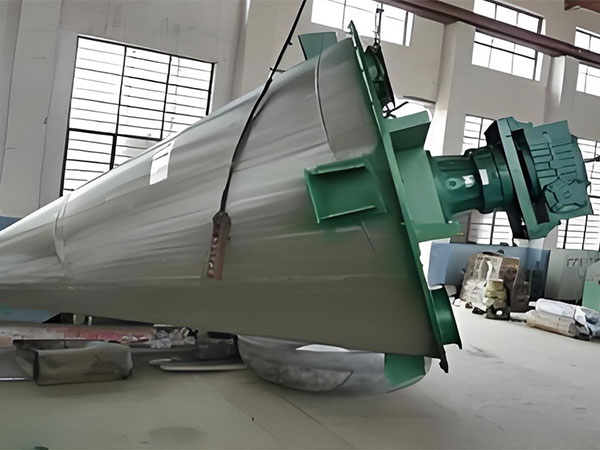

The machine structure is designed for efficiency and it looks great. All of the parts that come in contact with the working material are made from stainless steel.
