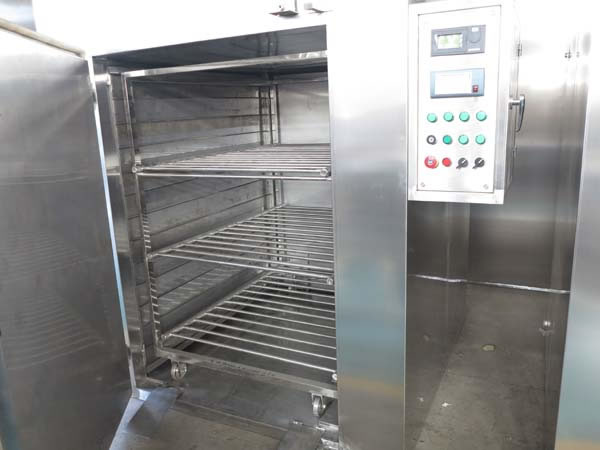

The hot air oven is a drying oven suitable for processing materials for hot solidification and dehydrating in many different industries. This series of hot air circulation oven has noise elimination and thermal stability with its automatic temperature control system. The entire system is enclosed to maximize heat efficiency.
Parameters| Specification | Model | Drying capacity (Kg) | Power (KW) | Steam consumption (Kg/h) | Heating area (m2) | velocity (m3/h) | Temperature between the top and the bottom (℃) | Drying trays (piece) | Overall dimension (L×W×H) mm | Number of baking cart (set) |
| RXH-5-C | CT-C-0 | 25 | 5 | 5 | 5 | 3400 | ±2 | 8 | 1400×1200×1600 | 0 |
| RXH-14-C | CT-C-IA | 50 | 0.45 | 10 | 10 | 3400 | ±2 | 24 | 1400×1200×2000 | 1 |
| RXH-14-C | CT-C-Ⅰ | 100 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 |
| RXH-27-C | CT-C-Ⅱ | 200 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 |
| RXH-41-C | CT-C-Ⅲ | 300 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3220×2000 | 6 |
| RXH-54-C | CT-C-Ⅳ | 400 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4450×2200×2000 | 8 |
| RXH-25-A | High-efficient far infrared sterilizing oven | 1200×1000×1600 | 1 | |||||||
