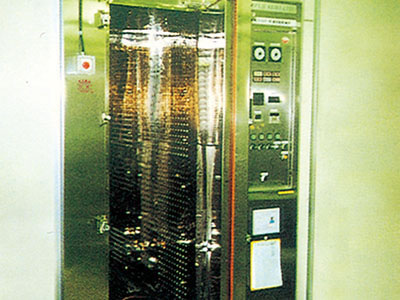

This special industrial oven is a hot air circulation oven that avoids pollution with its closed design and conforms to GMP standards. The fresh air is taken in through a fan and filtered to ensure a fully clean interior chamber once it is heated. This drying unit is highly efficient and solves many of the issues that come along with traditional oven dryers.
Parameters| Items | Drying capacity (Kg) | Power(KW) | Steam consumption (kg/h) | Heating area (m2) | Amount of air (m3/h) | Temperature difference between the top and bottom (℃) | Size of drying tray | Number of drying tray | Overall dimensions (mm) | Weight (kg) |
| Specification | ||||||||||
| JCT-C-I | 100 | 4 | 40-80 | 50 | 4000-7300 | ±2 | 550×610×80 | 10 | 2350×1400×2280 | 2200 |
| JCT-C-Ⅱ | 200 | 7.5 | 80-120 | 80 | 7200-15800 | ±2 | 530×610×80 | 20 | 3100×1600×2700 | 4000 |
Oven for drying materials as follows:
| Materials | Dyestuff | Pharmaceutical | Catalyst | Resin | Product of kiln | Amino acid |
| Capacity(kg) | 200 | 260 | 370 | 35 | 100 | 200 |
| Initial moisture (%) | 60 | 65 | - | 35 | 31 | 50 |
| Final moisture (%) | 0.3 | 0.5 | - | 10 | 3 | 2 |
| Mass density(kg/l) | 0.56 | 0.5 | 0.92 | 0.8 | 0.51 | 0.5 |
| Temperature of hot air(℃) | 60 | 80 | 400 | 150 | 100 | 80 |
| Drying time(h) | 5 | 6 | - | 3 | 40 | 1 |
| Drying area(m2) | 6.5 | 5.8 | 4.6 | 0.63 | 6.6 | 6.8 |
| Heat source | Steam heater | Stream heater | Air heater | Steam heater | Electric heater | Stream heater |
