Aseptic Spray Dryer

 Aseptic Spray Dryer

Our asepsis spray dryer uses purified air that is filtered through several filtration components. The air is then heated and transferred to the dryer. The dried finished products are then separated through a cyclone separator and packaged at a working table in an asepsis room.

This type of drying device is a key component in the manufacturing process of pharmaceutical products because of their high safety requirements.

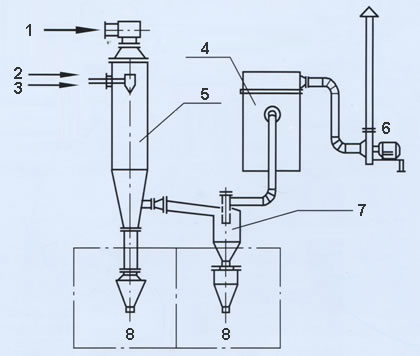

The names according to the drawing:

1. Hot air
2. Liquid material
3. Compressed air
4. Dust collector
5. Spray tower
6. Induced draft fan
7. Separator
8. Bio-clean room
