Applications:
The industrial paddle mixer is suitable for the drying and mixing of the following materials: detergents, fertilizers, feedstuff, wheat flour, milk powder, perfumes, coffee, salt, plastic and all kinds of pulp materials.
Specification | WZ-0.05 | WZ-0.1 | WZ-0.3 | WZ-0.5 | WZ-1 | WZ-2 | WZ-3 | WZ-4 | WZ-6 |
mixed amount/batch kg | 24-30 | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 |
power kw | 2.2 | 3 | 4-5.5 | 5.5-7.5 | 7.5-11 | 11-15 | 18.5-22 | 22-30 | 30-37 |
weight kg | 250 | 360 | 750 | 880 | 2100 | 2740 | 3800 | 5100 | 6200 |
Features:
The equipment can run in entirely enclosed with high precision, high speed, and low energy consumption.
Pneumatic, electrical and manual discharging methods.
The atomizing device can be distributed on the cylinder cover to realize solid-liquid mixing.

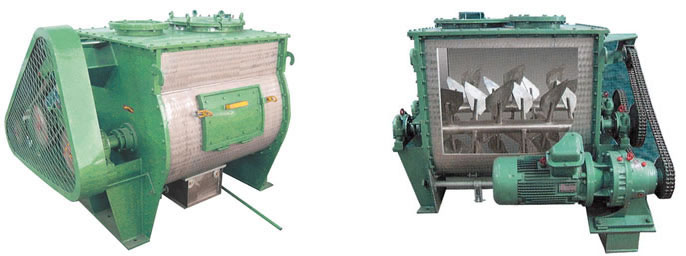

Machine Principle
The industrial paddle mixer is a highly effective mixing machine with two axles rotating inversely with a horizontal mixing drum. The paddles are specially distributed on the axle to ensure radical circulation for even blending.
